4mm Stainless Steel Cable Trellis PRO Multi Angle Cross Fitting 100mm - 208.635.100

If installing into masonry, brick and stone, use 10mm Masonry Drill Bit for Rawlplug.


This TECNI®PRO MULTI ANGLE CROSS Trellis Fitting can be used as an end and intermediary post as well as an intermediary post in conjunction with the TECNI®PRO EYE Trellis Fitting with TECNI®Guardrail. Measure out and mark off where the fittings are to be positioned. Using a 8mm drill bit, drill a hole with a minimum depth of 65mm into the wall. Remove any debris from the hole. Tap the bolt using a hammer into the wall until between 20 and 30mm of thread is left exposed. If using a TECNI®50mm black rubber washer(Catalogue Code: 172.052.080),thread on the washer tight to the wall. Screw on the Cover Plate until it is clamped tight to the wall. Next screw on the Trellis Pillar until it is tight up to the Cover Plate. Screw the 30mm piece of stud into the Trellis Pillar and then the Cross over clip onto the other end until the whole fitting is tight. Tighten until the Cross is in alignment with the plain of the cables. Ie. If your cables go vertically and horizontally ensure the Cross is aligned to allow this to be achieved.

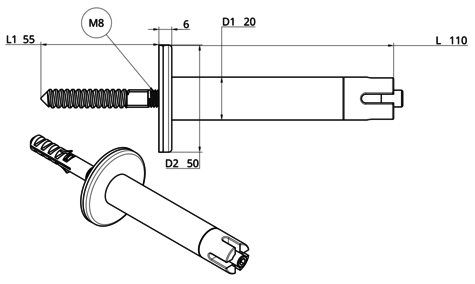

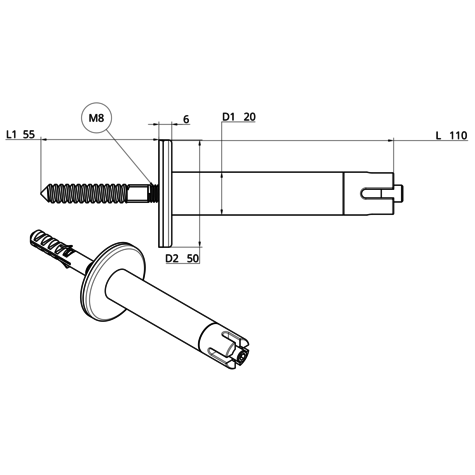

Dimensions
