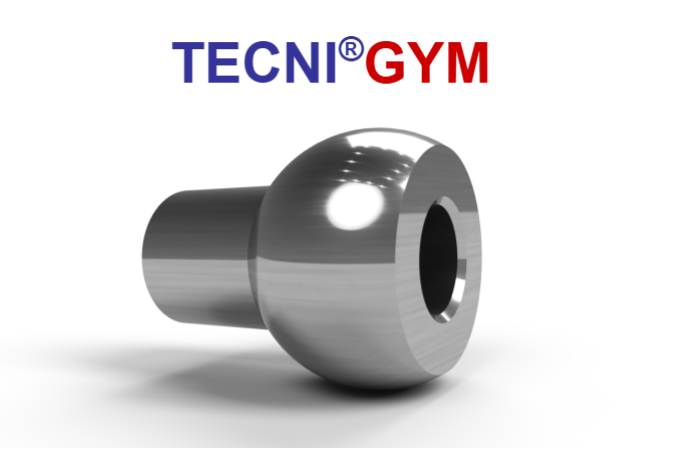

• TECNI GYM Single Hank Stainless Ball Fitting
  • Black Nylon coated wire rope with ball shank one end on a black background

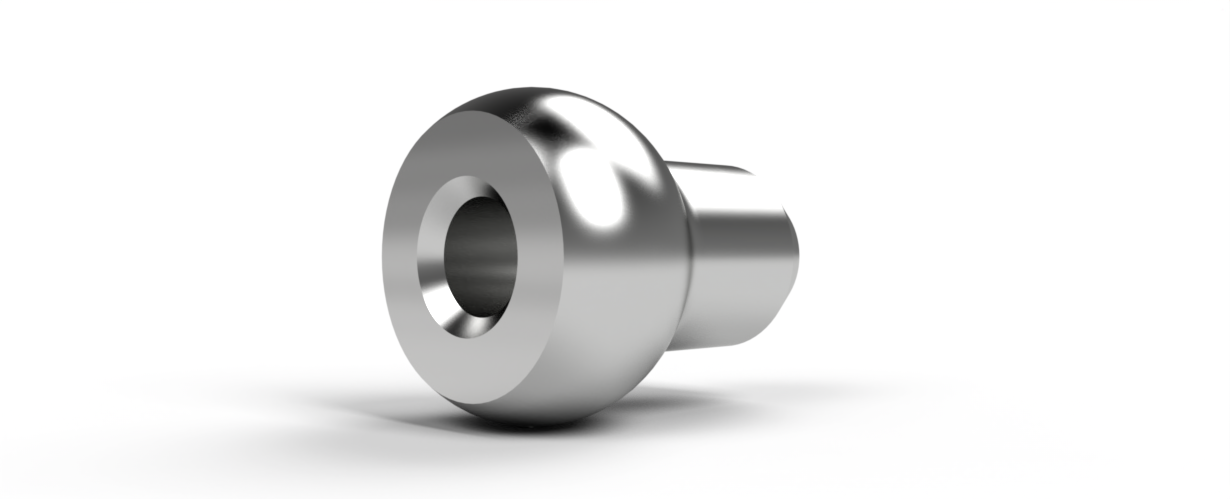

  • Metallic component on a white background

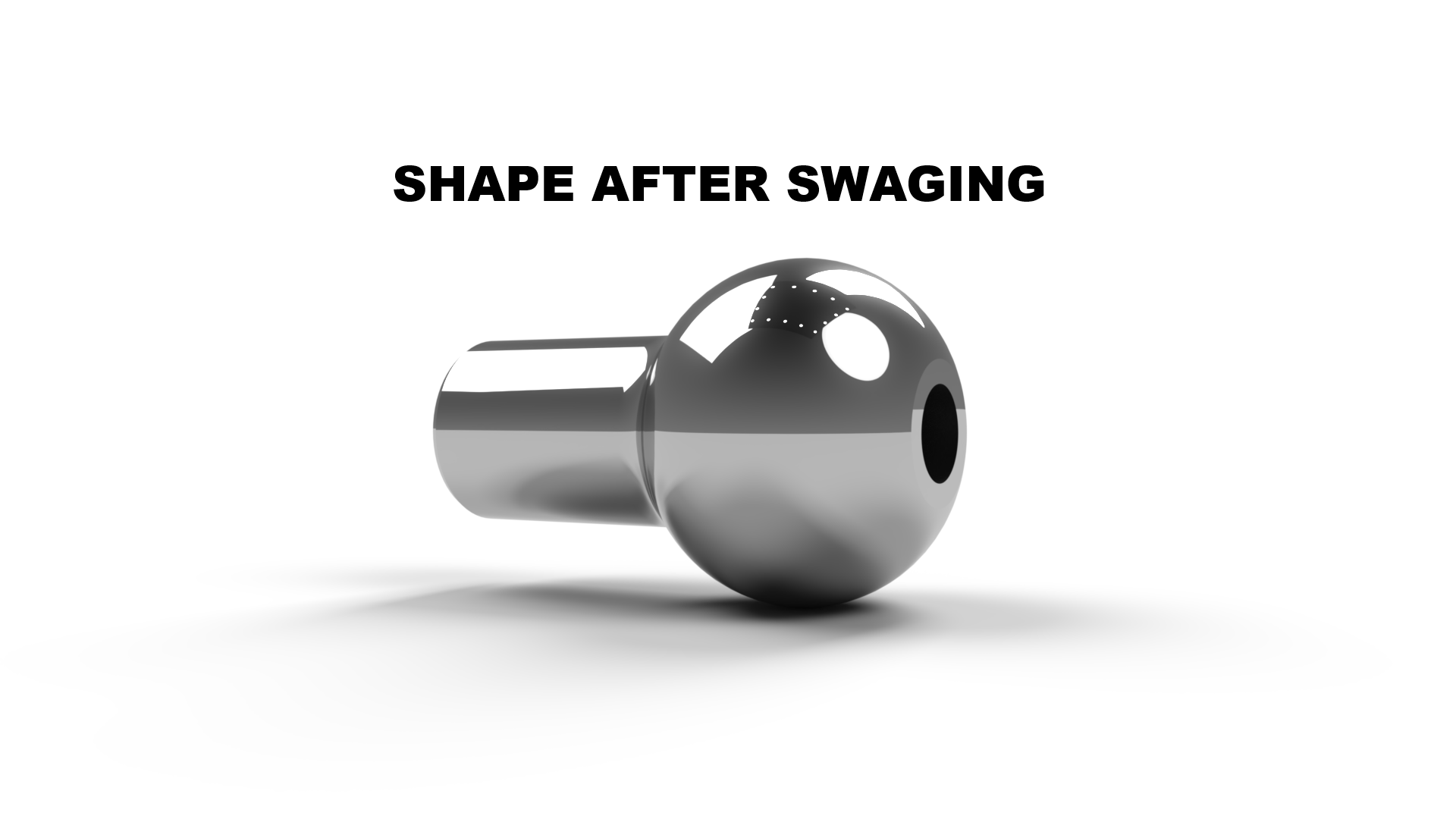

  • Metal component with 'Shape After Swaging' text on a white background
1 4

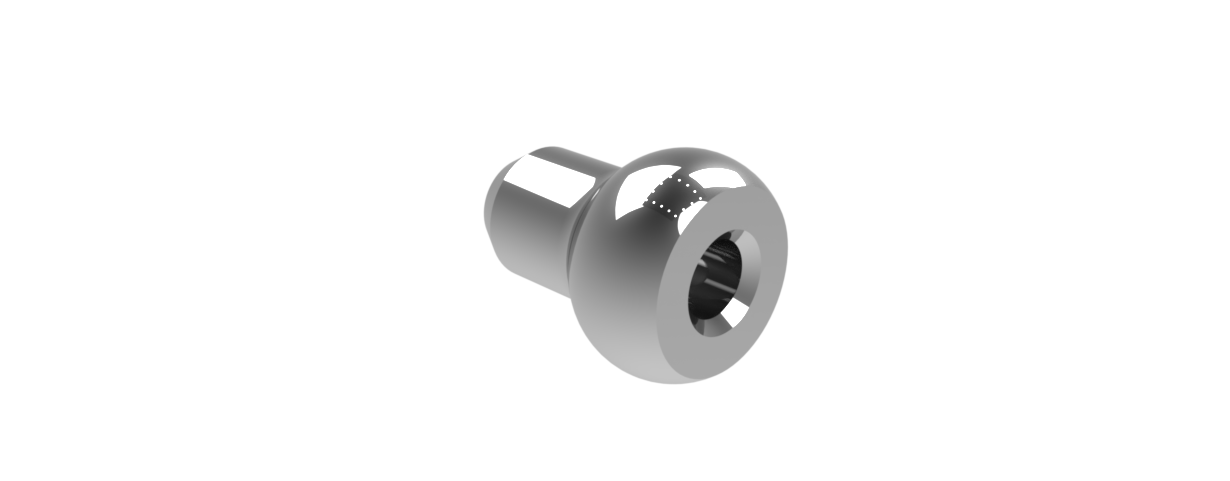

TECNI-GYM 2mm - 2.5mm (5/64" - 3/32") AISI 316 Stainless Steel Single Shank Ball Terminal 105.206.643

TECNI-GYM 2mm - 2.5mm (5/64" - 3/32") AISI 316 Stainless Steel Single Shank Ball Terminal 105.206.643

£1.60 GBP
£1.60 GBP £1.60 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

105.206.643

312 in stock

Product Code: 105.206.643

  • Cable Compatibility: 2mm-2.5mm (5/64"-3/32")
  • Terminal Type: Single Shank Ball Terminal
  • Material: Marine Grade A4-AISI 316 Stainless Steel
  • Application: Gym cables and other load-bearing assemblies

Manufactured from Marine-Grade A4-AISI 316 stainless steel, this terminal provides excellent corrosion resistance and durability for demanding environments.

The expected strength of this style of termination is approximately 90% of the wire rope’s Minimum Breaking Load (MBL). Final assembly testing should always be carried out to verify performance and suitability for the intended application.

Applications & Advice

  • Hydraulic Swaging Tool: YCP-240C
  • Ball Dies: 101.240.064

This stainless steel single shank swage ball terminal will form a strong & reliable end termination or stop fitting for 2.38mm (3/32") cable. Ideal for fitness equipment manufacturing, repair, and custom cable assemblies where a compact and secure end termination is required.

Downloads

Datasheet
