8mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.608

8mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.608

£36.08 GBP
£36.08 GBP £36.08 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

105.840.608

Low stock: 5 left

8mm A4-AISI 316 Stainless Steel Swageless Jaw Terminal - 105.840.608

Suitable for use with 8mm Stainless Steel 1x19, 7x7 or 7x19 cable.

When correctly assembled the fitting is capable of achieving 90% of the breaking load of the cable. This quick and easy to install fitting can be assembled by hand using a spanner.

Ideal for outdoor and marine environments. Typical applications include structural tensioning, catenary, balustrade, yacht rigging and mast stays.

Applications & Advice

Suitable for use with 1x19, 7x7 and 7x19 stainless steel wire rope. NOT SUITABLE for use with galvanised cable.

Technical Info

How to Use

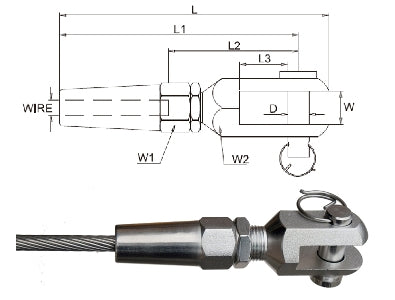

Dimensions

D: 14mm
L: 118mm
L1: 105mm
L2: 56mm
L3: 21mm
W: 14mm
W1: 24mm
W2: 30mm

Downloads

Swageless Jaw Datasheet
