M10 A2-AISI 304 Stainless Steel Shield Anchor with M8 Threaded Forged Eyebolt - 113.008.010

M10 A2-AISI 304 Stainless Steel Shield Anchor with M8 Threaded Forged Eyebolt - 113.008.010

£12.98 GBP
£0.00 GBP £12.98 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

113.008.010

58 in stock

M10 x 60mm 304 Stainless Steel Eyebolt with shield anchor

Manufacturer advised extraction force in C20/25 concrete: 516kgf

M8 Threaded eyebolt, with M10 anchor shield. Internal diameter of eye 12mm.

Suitable for use in concrete, brickwork, block or stone. To install drill a 10mm hole. Hammer the fitting into the pre-drilled hole and screw the eyebolt inwards to activate the anchor sleeve.

Typical applications:

Catenary

Shade Sails

Outdoor light and sign suspension

Customer notice: This fitting must not be used for safety harness or lifting applications.



Applications & Advice

Manufacturer advises an extraction load of 516 kgf. Characteristic resistance in C20/25 concrete of an isolated anchor (no edge distance effect neither anchor distance effect)
Red PVC plastic collar prevents shield turning in drilled hole to ease installation. Drill diameter 10mm.

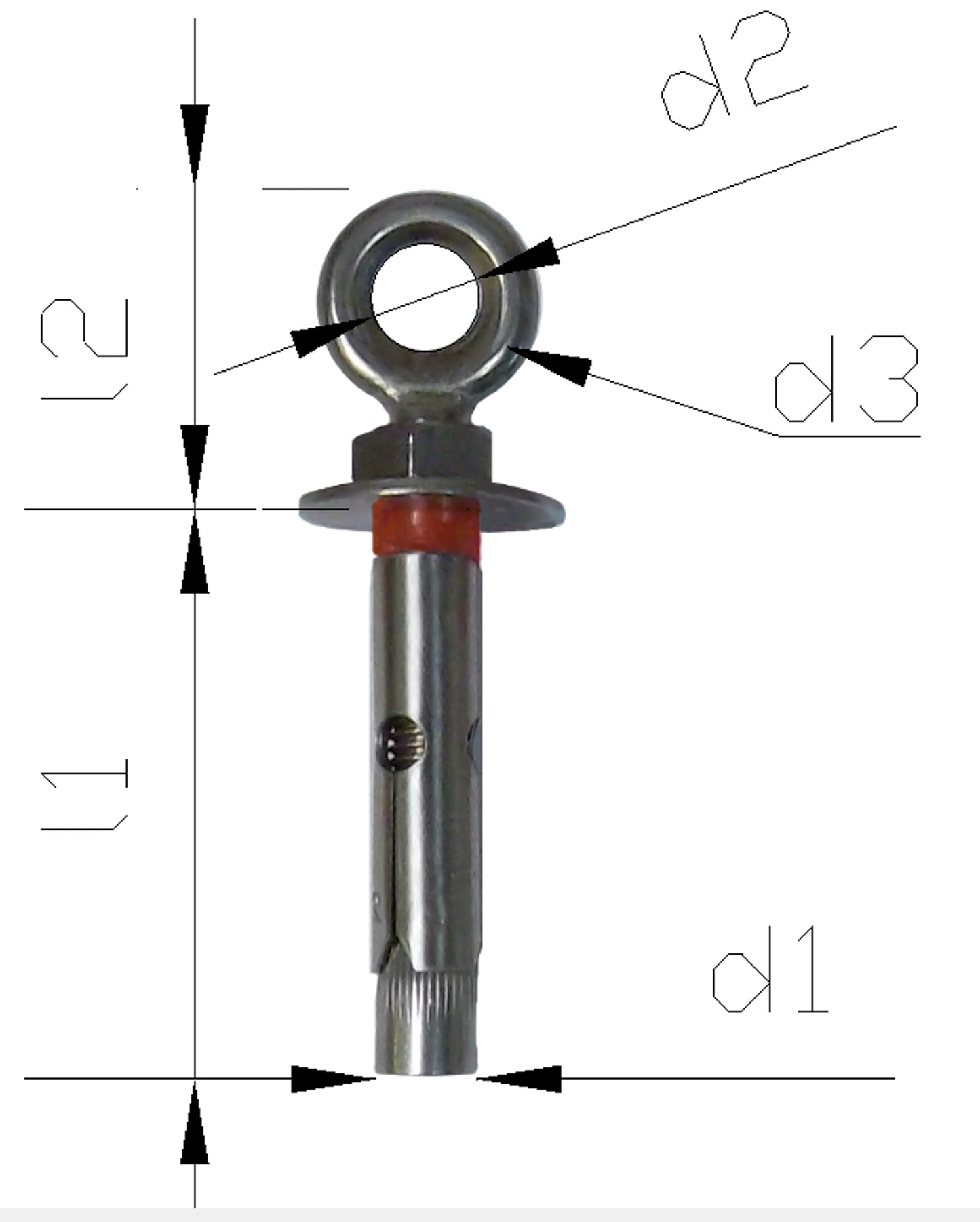

Dimensions

D1: M8 x 1.5mm RH with 10mm Shield
D2: 12mm
d3: 5.2mm
L1: 60mm
L2: 34mm
