BA3-1.5 A2-AISI 304 Stainless Steel Swage Ball Fitting 1.2mm & 1.25mm (3/64") Cable - 127.000.012

BA3-1.5 A2-AISI 304 Stainless Steel Swage Ball Fitting 1.2mm & 1.25mm (3/64") Cable - 127.000.012

£2.89 GBP
£0.00 GBP £2.89 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

127.000.012

In stock

1.2mm - 1.25mm (3/64") A2 AISI 304 Stainless Steel Ball fitting



Loo's product code: BA3-1.5

Meets all the requirements of:

Boeings BACT14B

NAS494

DFARS compliant



Suitable for use with 1.2mm - 1.25mm cable. Manufactured from Stainless Steel as specified in MIL-DTL-781 and certified to the appropriate standard(s). The expected strength regarding this type of end termination is 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.



Typical Applications



Aircraft cables

Automotive Industry - control cables

Gym Cables



For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

Applications & Advice

This fitting can be pressed using the YCP120C tool or the YCP240C. With compatible ball die fittings (4.8mm ball).

Use for load bearing stops and retaining cable on winch drums.

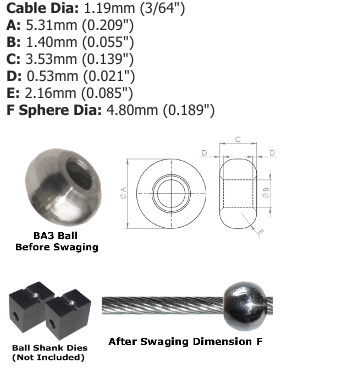

Dimensions

Dimensions

Downloads

Datasheet

Technical Information

Test Results of BA3 Ball Terminals using single pressing action (pressed in one plane) with the YCP240C Hydraulic Crimp Tool. Using 3/64" stainless steel cable and BA3 Ball fitting 127.000.012, the fitting pulled off at 93 kgs - 205 lbs.

Using 1/16" stainless steel cable and BA3 Ball fitting 127.000.015, the fitting pulled off at 107 kgs - 235 lbs.

Test Results of BA3 Ball Terminals using 2 pressing action with the YCP240C Hydraulic Crimp Tool. Using 3/64" stainless steel cable and BA3 Ball fitting 127.000.012, the assembly broke at 124kg, 273 lbs. Using 1/16" stainless steel cable and BA3 Ball fitting 127.000.015, the assembly broke at 171kg, 377lbs
