BA3-4 A2-AISI 304 Stainless Steel Swage Ball Fitting 3mm (1/8") Cable - 127.000.030

BA3-4 A2-AISI 304 Stainless Steel Swage Ball Fitting 3mm (1/8") Cable - 127.000.030

£4.15 UK VAT excl.
£4.98 UK VAT incl.
Sale Sold out
Shipping calculated at checkout.

Product Code

127.000.030

179 in stock

Quantity Discounts
 More payment options

3mm (1/8") A2 AISI 304 Stainless Steel Ball fitting

Loo's product code: BA3-4

Meets all the requirements of:

Boeings BACT14B

NAS494

DFARS compliant

Suitable for use with 3mm cable. Manufactured from Stainless Steel as specified in MIL-DTL-781 and certified to the appropriate standard(s). The expected strength regarding this type of end termination is 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

Typical Applications

Aircraft cables

Automotive Industry - control cables

Gym Cables

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

This fitting can be pressed using the YCP240C. With compatible ball die fittings (8mm ball).

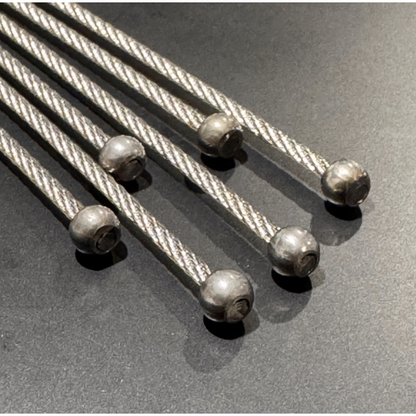

Use for load bearing stops and retaining cable on winch drums.

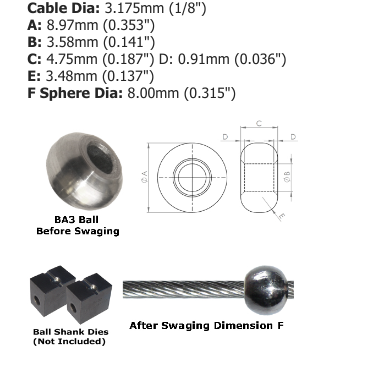

Dimensions

Datasheet

View full details
