Crosby IP10 Vertical Plate Clamp

Crosby IP10 Vertical Plate Clamp

£242.00 GBP
£242.00 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

222.701.674

Type
Working Load Limit - t

In stock
  • Welded Alloy Steel Construction
  • Fully certified for lifting
  • Lock open & Lock Closed
  • 5:1 Factor of Safety
  • Fully Repairable

Crosby IP Vertical Plate Clamp manufactured from welded Alloy Steel, designed for lifting, turning, moving or vertical lifting of Mild Steel plates or fabrications and other soft metal plates. All models come equipped as standard with an RFID Chip for enhanced control of your lifting gear register and are fully repairable.

Applications & Advice

For safe use, Crosby recommend that the minimum load on each clamp must be at least 10% of the WLL i.e. for a 1 tonne clamp the minimum plate weight must be 100 kgs per clamp.

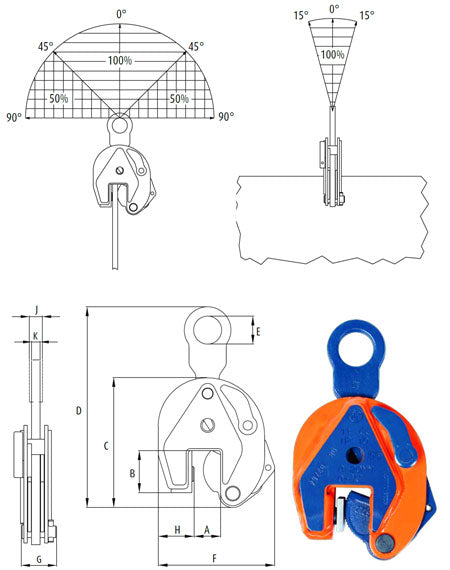

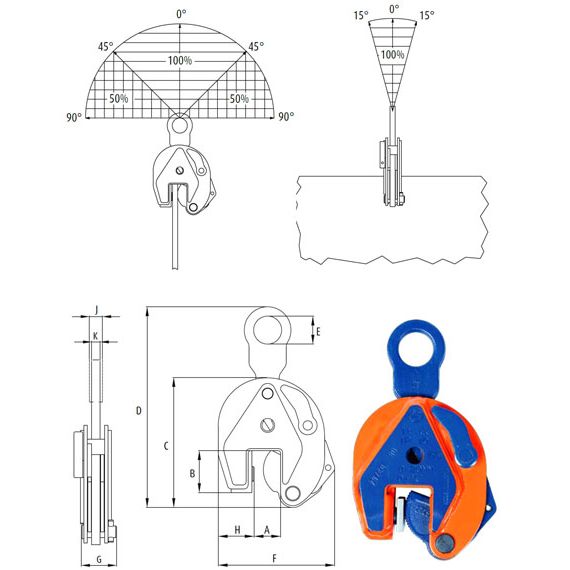

Dimensions

Data Sheet
