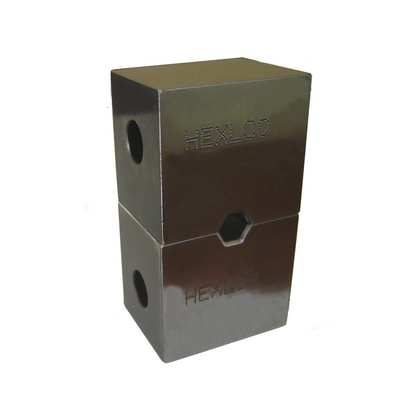

Code 5 Hexloc 5 Die Set - 100.006.050

Code 5 Hexloc 5 Die Set - 100.006.050

£468.74 GBP
£468.74 GBP £468.74 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

100.006.050

Low stock: 2 left
  • Designed for use with Talurit 20, 30 and 40 tonne presses
  • Provides strong reliable termination
  • Long life span
  • Simple to install & remove
  • Stainless swage fittings available from stock

These hardened Hexloc pressing dies are designed for use with the Talurit 20 tonne, 30 tonne and 40 tonne hydraulic swaging machine for pressing These hardened Hexloc pressing dies are designed for use with the Talurit 20 tonne, 30 tonne and 40 tonne hydraulic swaging machine for pressing 9.1mm section stainless & other materials.


Applications & Advice

Hexloc 5 Die Set for swaging 9.1mm section stainless & other materials to fit Talurit Hydraulic Swaging Machine 20t, 30t and 40t.

Dimensions

Presses Terminal Dia: 9.1mm

Dia. After Swaging: 7.5mm

D1: 10.5mm

D2: 7.8mm

L1: 76mm

L2: 45mm

L3: 38mm

W1: 42mm

W2: 32mm
