DIE-YCP-240C-BALL-4.8B

Name: DIE-YCP-240C-BALL-4.8B
Brand: TECNI
SKU: 101.240.048
Price: 110.86 GBP
Availability: InStock

£110.86 GBP

~~£0.00 GBP~~ £110.86 GBP

Sale Sold out

Shipping calculated at checkout.

Product Code

SKU:101.240.048

Quantity

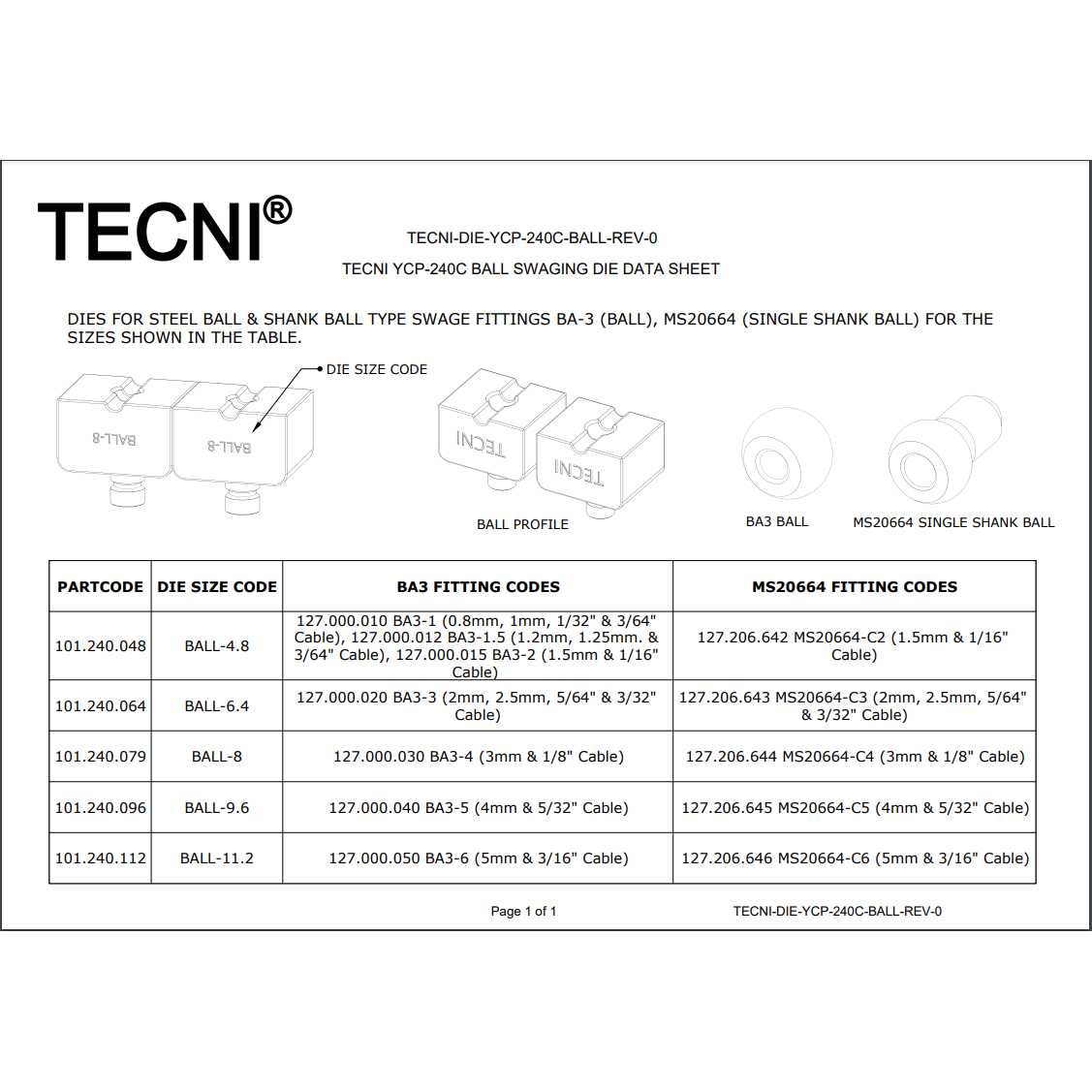

YCP 240C Die Set to Swage 0.8,1,1.2,1.5mm Ball Fittings 4.8mm Diameter Finished Ball Size . Catalogue Code: 101.240.048.

Applications & Advice

Ball Dies - specifically designed for swaging Mil-Spec MS20664 Shank Ball Terminals & BA3 ball terminals from 0.8mm up to 5mm. Perfect for gym cable repair.
Hexagon Dies - suitable for use with stainless swage fittings
Round Dies - or "straight dies" - perfect for swaging ferrules

Provides strong reliable termination, once swaged the strength of the termination will be 90% of the minimum breaking load of the cable for MS20664-C2 to MS20664-C6 Shank Ball Terminals, and 50% of the minimum breaking load of the cable for BA3-1 to BA3-6 swage ball fittings, in line with EN Standard 13411-4:2011 (Terminations for steel wire ropes). Safety-critical applications should be verified via testing.

Please note that the YCP 240C comes with full Hex and Round die sets included. Ball Swaging Dies are sold separately.
