1/16" (1.5mm) A2-AISI 304 Stainless Steel Eye Terminal with 0.204" (5.18mm) pin diameter - 100.204.102

1/16" (1.5mm) A2-AISI 304 Stainless Steel Eye Terminal with 0.204" (5.18mm) pin diameter - 100.204.102

£1.33 GBP
£0.00 GBP £1.33 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

100.204.102

177 in stock

  • 1/16" (1.5mm) A2-AISI 304 Stainless Steel Eye Terminal with 0.204" (5.18mm) pin diameter - 100.204.102

    • 5.2mm Eye
    • Provides very strong & reliable termination
    • Assemblies manufactured to order



    This compact & adaptable AISI 304 stainless steel swage terminal is designed for 1/16" & 1.5mm cable. Perfect for suspension, shop fittings & security cables.

Applications & Advice

Great for tagging applications and restraint lanyards.

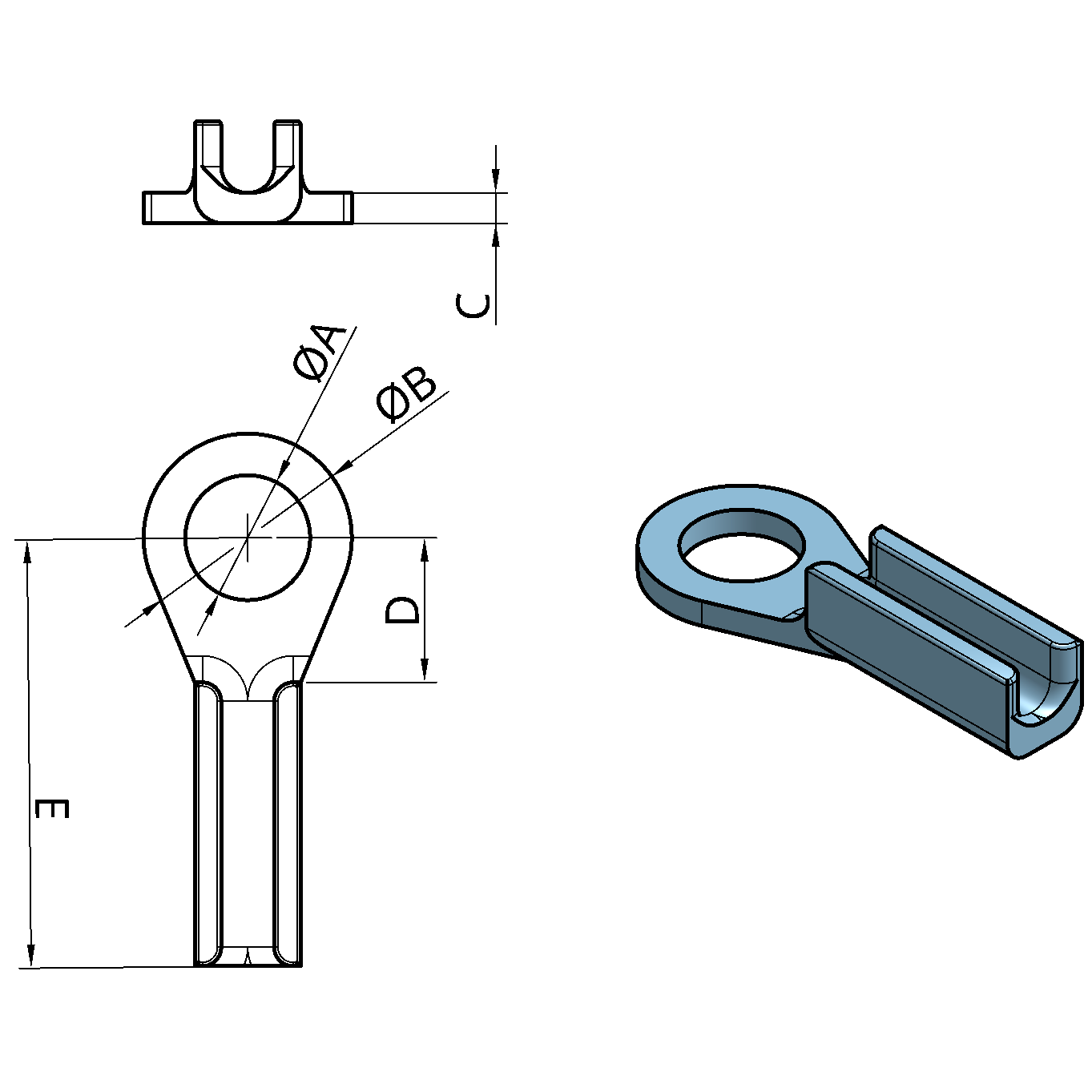

Dimensions

To Fit Wire Rope Dia (in) 1/16" (1.6mm)

A Pin Hole (in) 0.204 (5.2mm)

B (in)0.46 (11.68mm)

C (in)0.06 (1.52mm)

D (in)0.4 (10.16mm)

E (in)0.978 (25mm)

Max. Holding Strength: 180 kgs (400 lbs)

Material Type: S.S. A2-AISI 304 Stainless Steel

Wt/100 pcs: 0.29 kgs (0.65 lbs)

Downloads

Technical Information

USA manufactured. AISI-304 Stainless Steel.
