EYE-SS-1.5MM-6.6MM-PIN 100.201.102
EYE-SS-1.5MM-6.6MM-PIN 100.201.102
Regular price
£2.93 GBP
Regular price
£0.00 GBP
Sale price
£2.93 GBP
Unit price
/
per
Shipping calculated at checkout.
Product Code
SKU:100.201.102
In stock
Couldn't load pickup availability
-

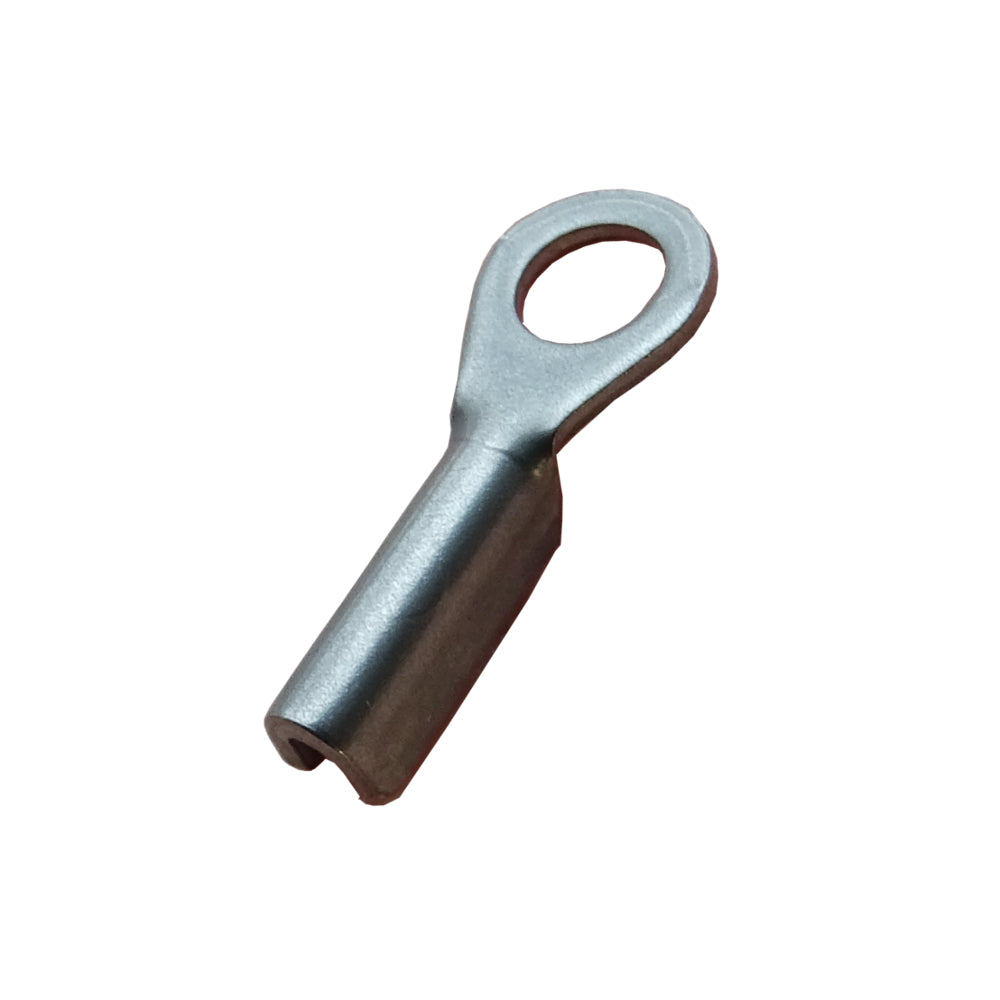

1/16" (1.5mm) Stainless Steel Eye Terminal with 0.26" (6.6mm) eye - 100.201.102
- 6.6mm Eye
- Provides very strong & reliable termination
- Suitable for Use with TECNI YCP-120
- Flat profile allows for bolting or wall fixing
- Assemblies manufactured to order

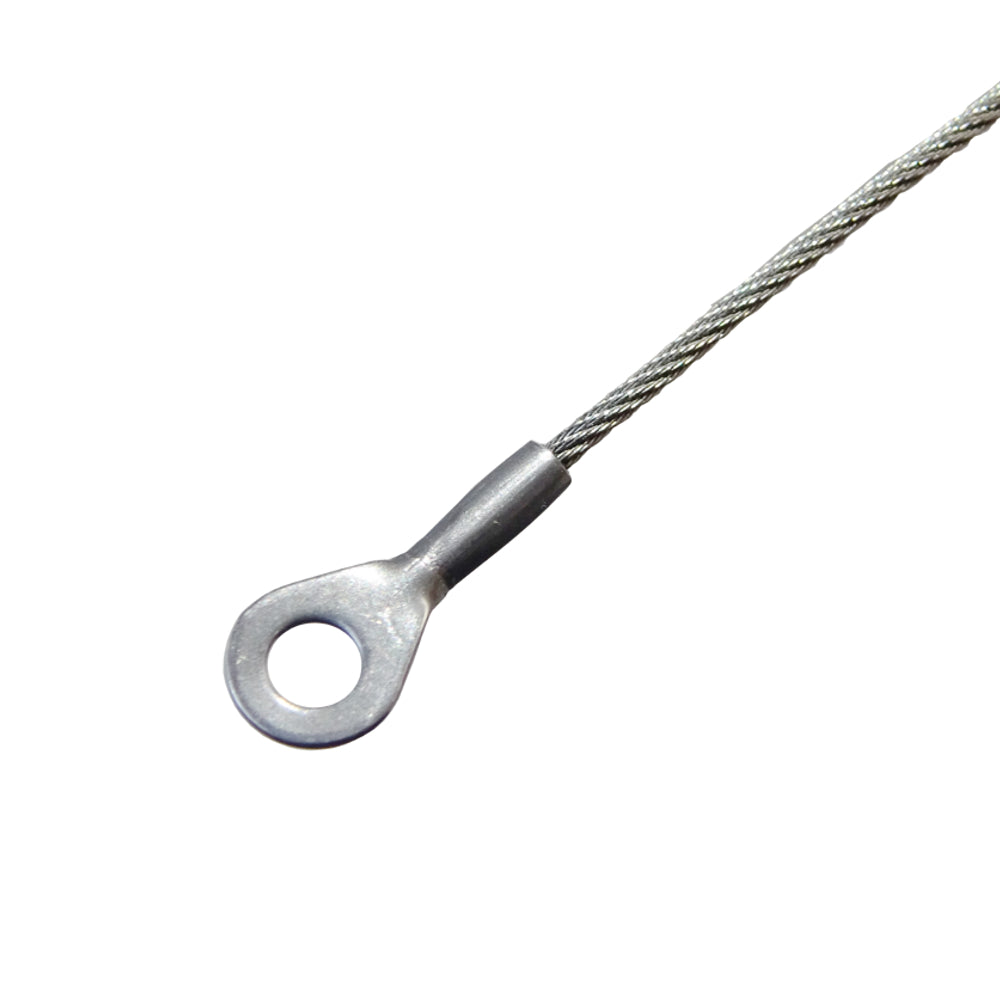

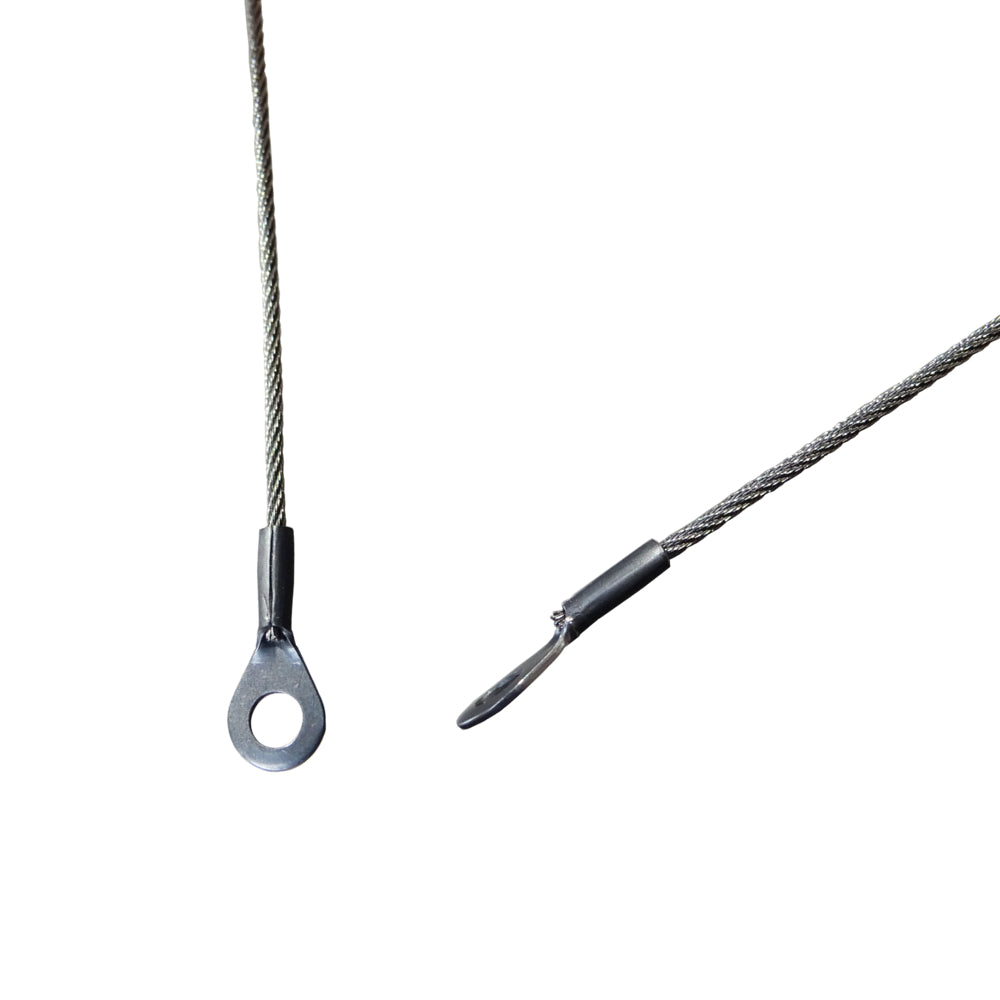

This compact & adaptable AISI 304 stainless steel swage terminal is designed for 1/16" & 1.5mm cable. Perfect for suspension, shop fittings & security cables.
| Break / proof @ | Comments | Tool Used | Test Machine |
| Destruction test to 88kgs | Eye terminal pulled off (using 2mm 7x7 Galvanised steel MBL 260kgs 503.000.020) | YCP 120C | Mecmesin 2.5Kn |
Applications & Advice
Applications & Advice
Technical Information
Technical Information

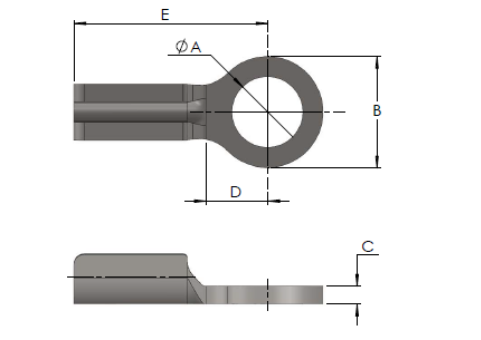

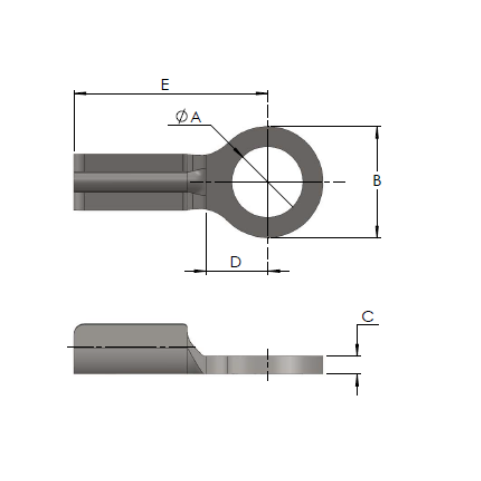

Dimensions
Dimensions
To Fit Wire Rope 1/16" (1.6mm)
A Pin Hole: 0.26" (6.6mm)
B: 0.43" (10.9mm)
C: 0.06" (1.5mm)
D: 0.32" (8.1mm)
E: 0.94" (23.9mm)
