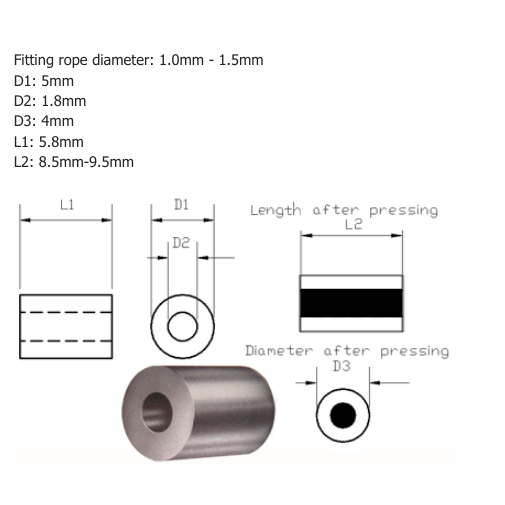

Code 1.5 TALURIT Aluminium Stop Ferrule - 100.315.015

Talurit™ Code 1.5 Aluminium Stop Ferrule.

R End Stop suitable for use with 1mm-1.5mm cable.

Aluminium and Copper end stops are not suitable for lifting applications. They are designed for suspension and locating purposes. The expected strength regarding this type of end termination is approximately 50% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

Aluminium stop ferrules are best suited for use with Galvanised cable but can be used with Stainless Steel in a non marine environment.

Available in sizes 1.5 - 32. The aluminium alloy is EN AW-5051A according to EN 573-3 and complies with material requirements in EN13411-3.

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.
