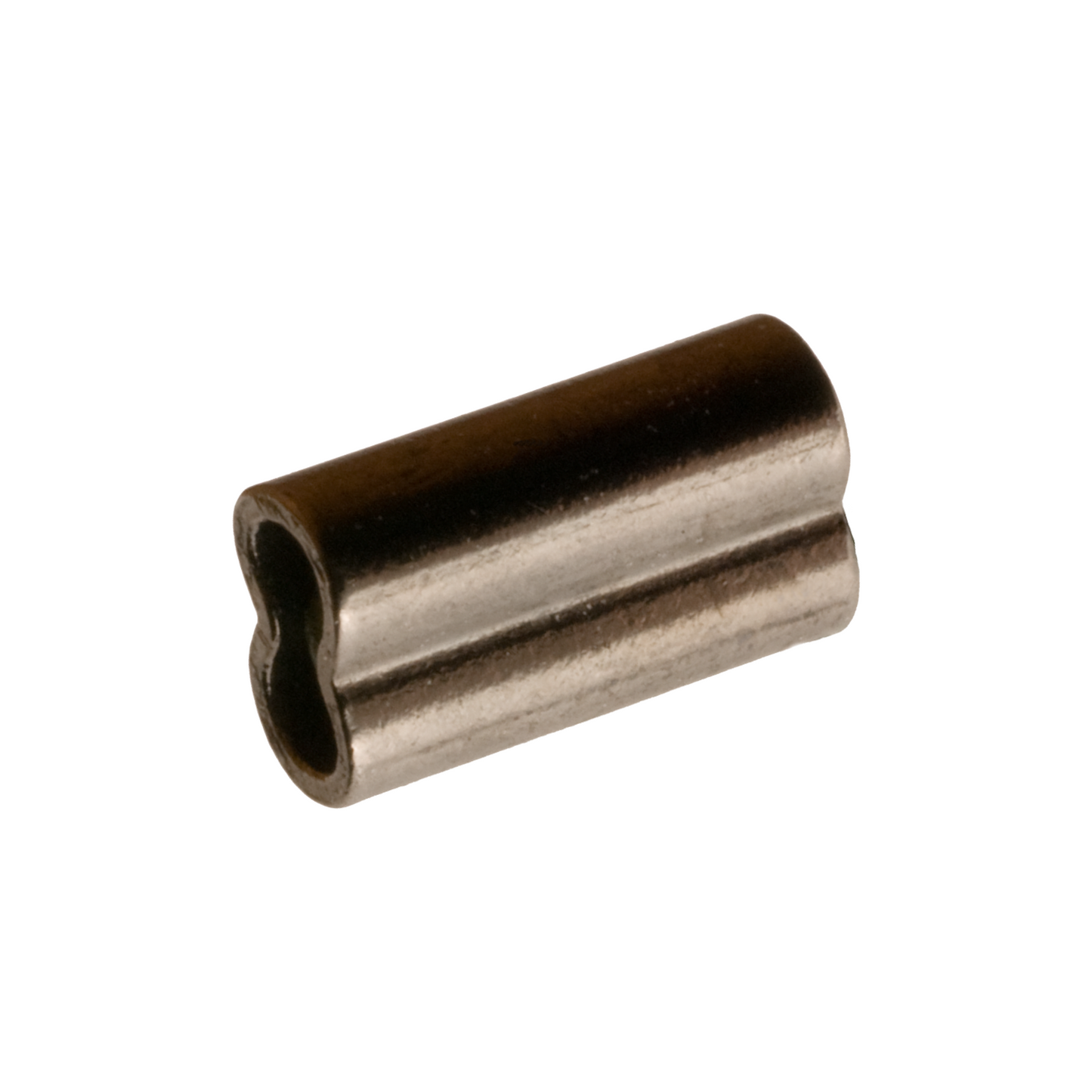

Code 1 Double Copper Ferrule - 115.000.010

Code 1 Double Copper Ferrule - 115.000.010

£0.28 GBP
£0.28 GBP £0.28 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

115.000.010

1967 in stock

Code 1 Double Copper Ferrule - 115.000.010

Suitable for use with 0.8mm-1mm cable when creating ferrule secured eye termination.

Copper ferrules are best suited for use with Stainless Steel cable. They offer a more cost effective solution to Stainless Ferrules where there's a need to avoid Galvanic corrosion.

Available in sizes 0.8mm - 2.2mm.

Suitable to crimp using our TECNI® Crimp Tool for Double Copper Ferrules - 115.207.023.

Applications & Advice

To fit, insert cable through one side of the ferrule then back through the other to form an eye. Hold the ferrule perpendicular to the die face in the hand tool and press/crimp.

Technical Info

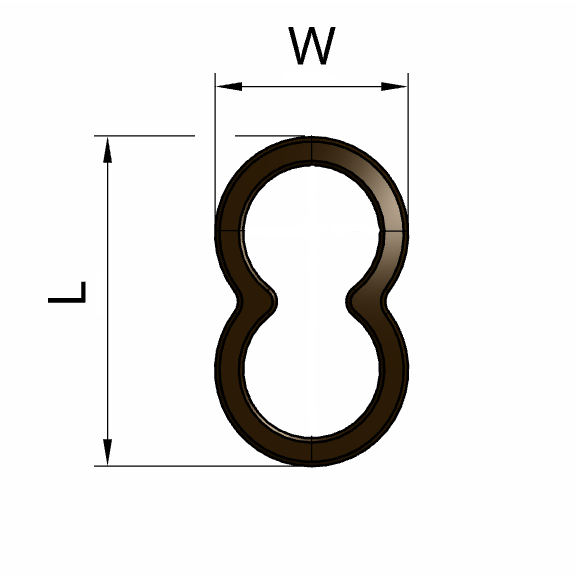

Dimensions

W: 3.58mm
L: 2.34mm
