Code 1.9 Double Copper Ferrule - 115.000.019
Code 1.9 Double Copper Ferrule - 115.000.019
Regular price
£0.35 GBP
Regular price
£0.35 GBP
Sale price
£0.35 GBP
Shipping calculated at checkout.
Product Code
SKU:115.000.019
Quantity
256 in stock
Couldn't load pickup availability

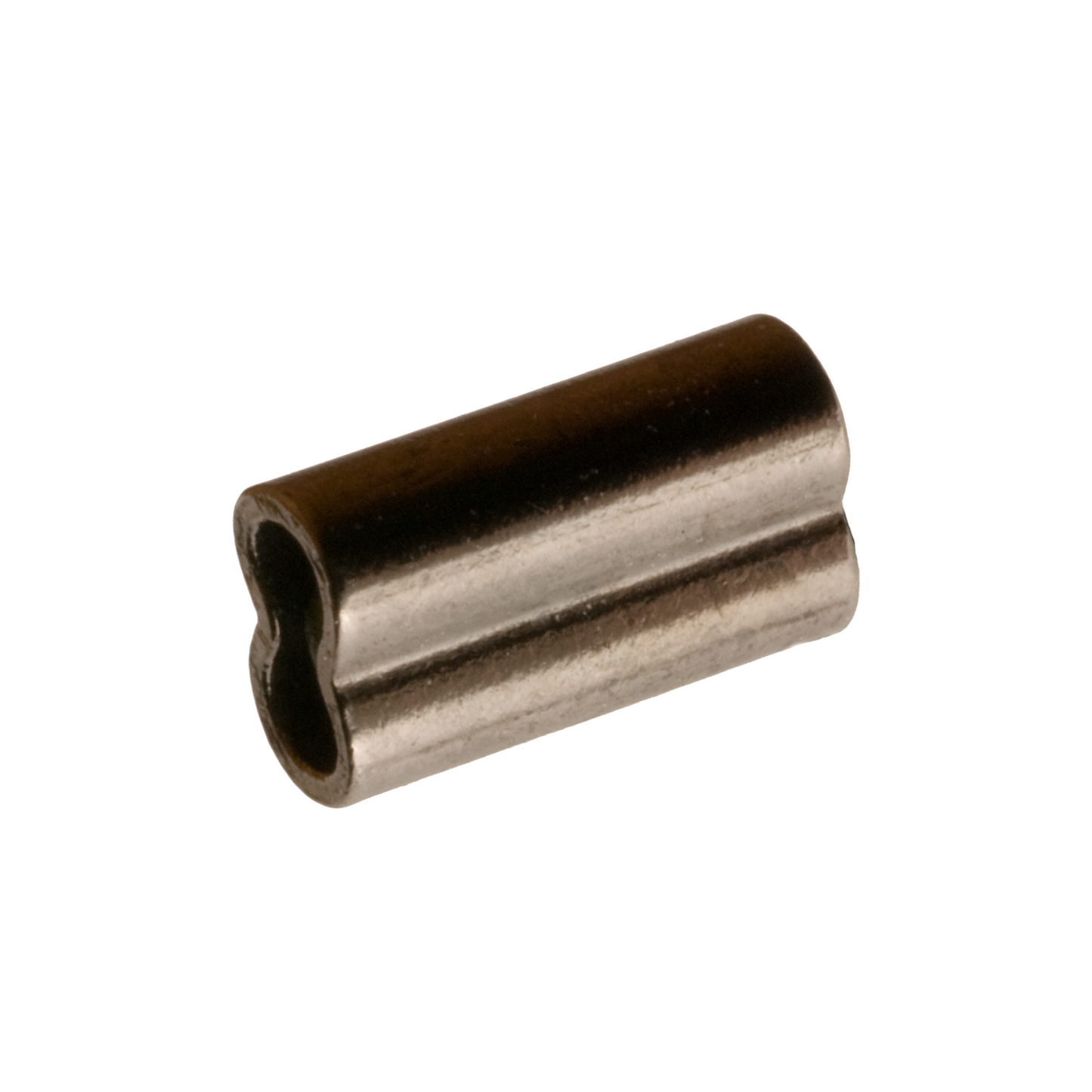

Code 1.9 Double Copper Ferrule - 115.000.019
Suitable for use with 1.8mm-1.9mm cable when creating ferrule secured eye termination.
Copper ferrules are best suited for use with Stainless Steel cable. They offer a more cost effective solution to Stainless Ferrules where there's a need to avoid Galvanic corrosion.
Available in sizes 0.8mm - 2.2mm.
Suitable to crimp using our TECNI® Crimp Tool for Double Copper Ferrules - 115.207.023.
Applications & Advice
Applications & Advice
To fit, insert cable through one side of the ferrule then back through the other to form an eye. Hold the ferrule perpendicular to the die face in the hand tool and press/crimp.
Technical Info
Technical Info

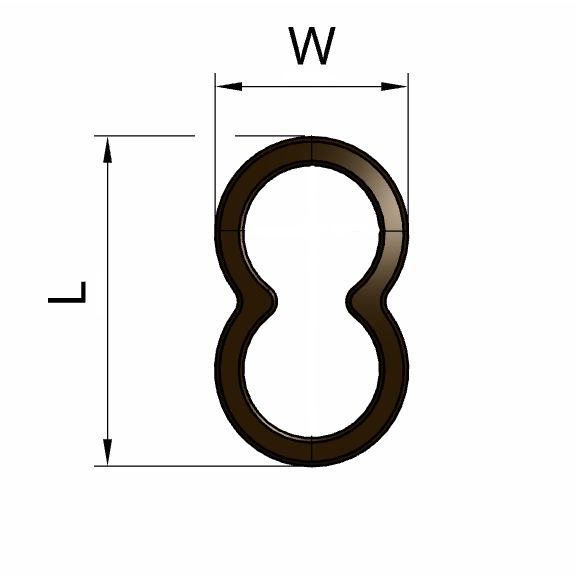

Dimensions
Dimensions
W: 5.46mm
L: 4.19mm
