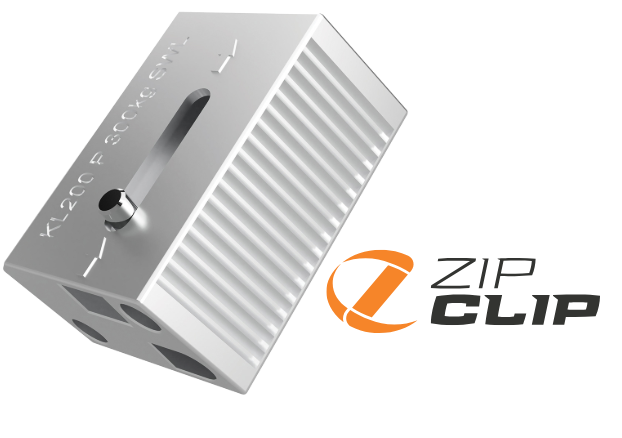

Kwik-Loc Cable Grip KL200 for 3-4.5mm Cable Max Suspension WLL 230 kgs - 113.030.045

Kwik-Loc Cable Grip KL200 for 3-4.5mm Cable Max Suspension WLL 230 kgs - 113.030.045

£6.98 GBP
£0.00 GBP £6.98 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

113.030.045

126 in stock

KL200 Kwik Loc Cable Grip

WLL: 230 kg

Suitable for use with 3 - 4.5mm, 7x19 Galvanised or Stainless Steel cable.

Kwik Locs are manufactured from Zamak 5 zinc alloy for the main body with internal stainless steel spring and sintered steel locking wedge(s) making them perfect for use indoors or outdoors.

This lightweight, quick and easy to fit cable grip is a safe, tool-free option for joining, tensioning & creating loops in cables on site.

Typical applications:

Catenary

Display signage and lighting solutions

Trellis

Shade sails

For further help or information, please contact a member of our Sales Team.

Applications & Advice

This product is also excellent with 7x19 cable constructions but make sure you apply the 5:1 factor of safety based upon the size and construction of cable selected. We would recommend you use wire rope cutters for neat cable ends to ensure easy installation.

*Please note that all stated working loads and certifications are based on the product being used in conjunction with the High Tensile Zip-Clip Rize Wire

Dimensions

A: 30mm
B: 21mm
B1: 24mm
C: 48mm
D: 40.5mm

(see photo above for reference)
