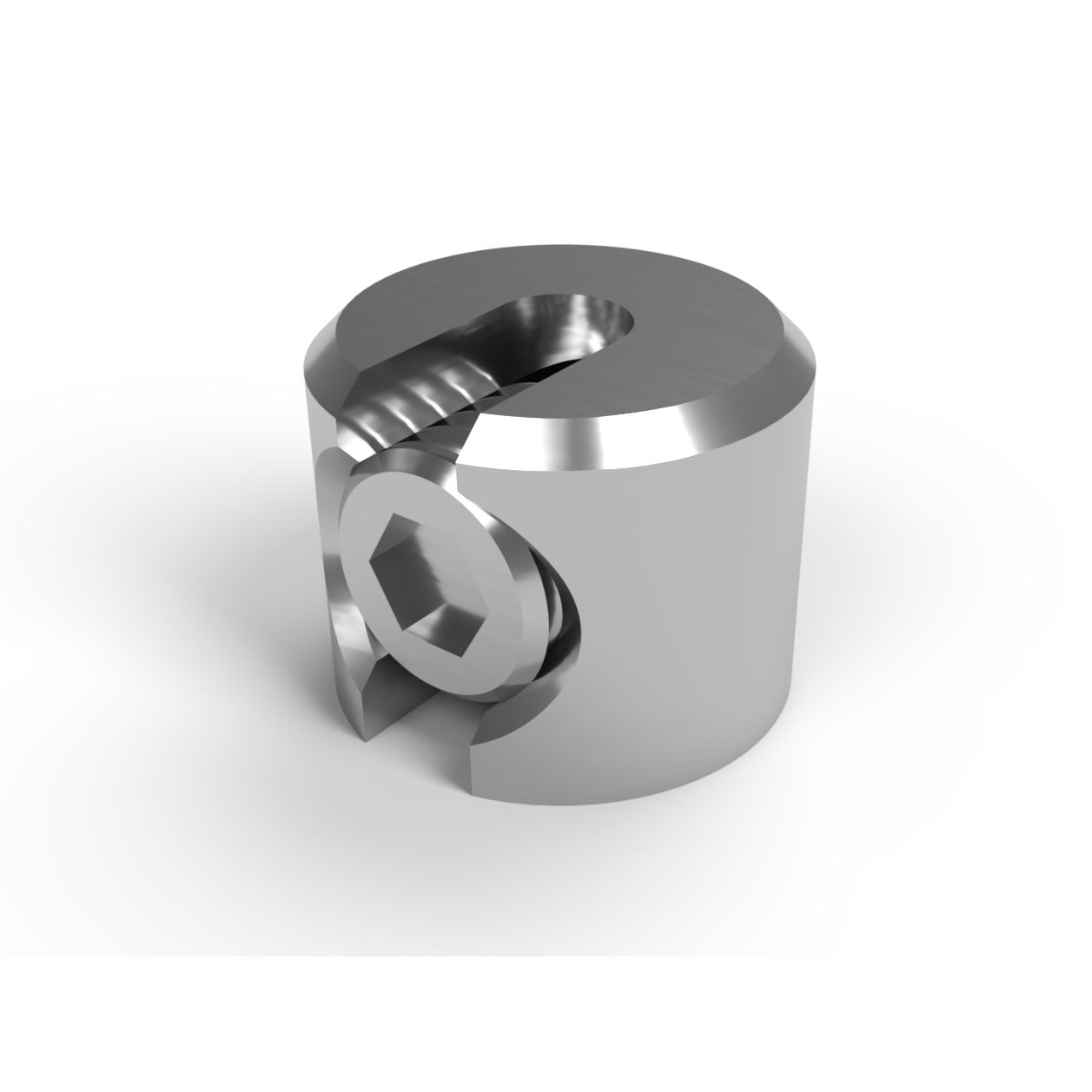

• Metallic circular C shaped clip with a hex screw on a white background. TECNI 351.710

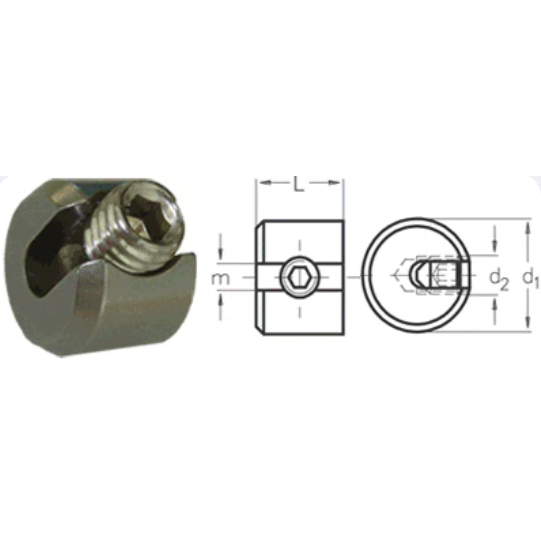

  • Dimensional drawing of a DIY Stop fitting on a white background

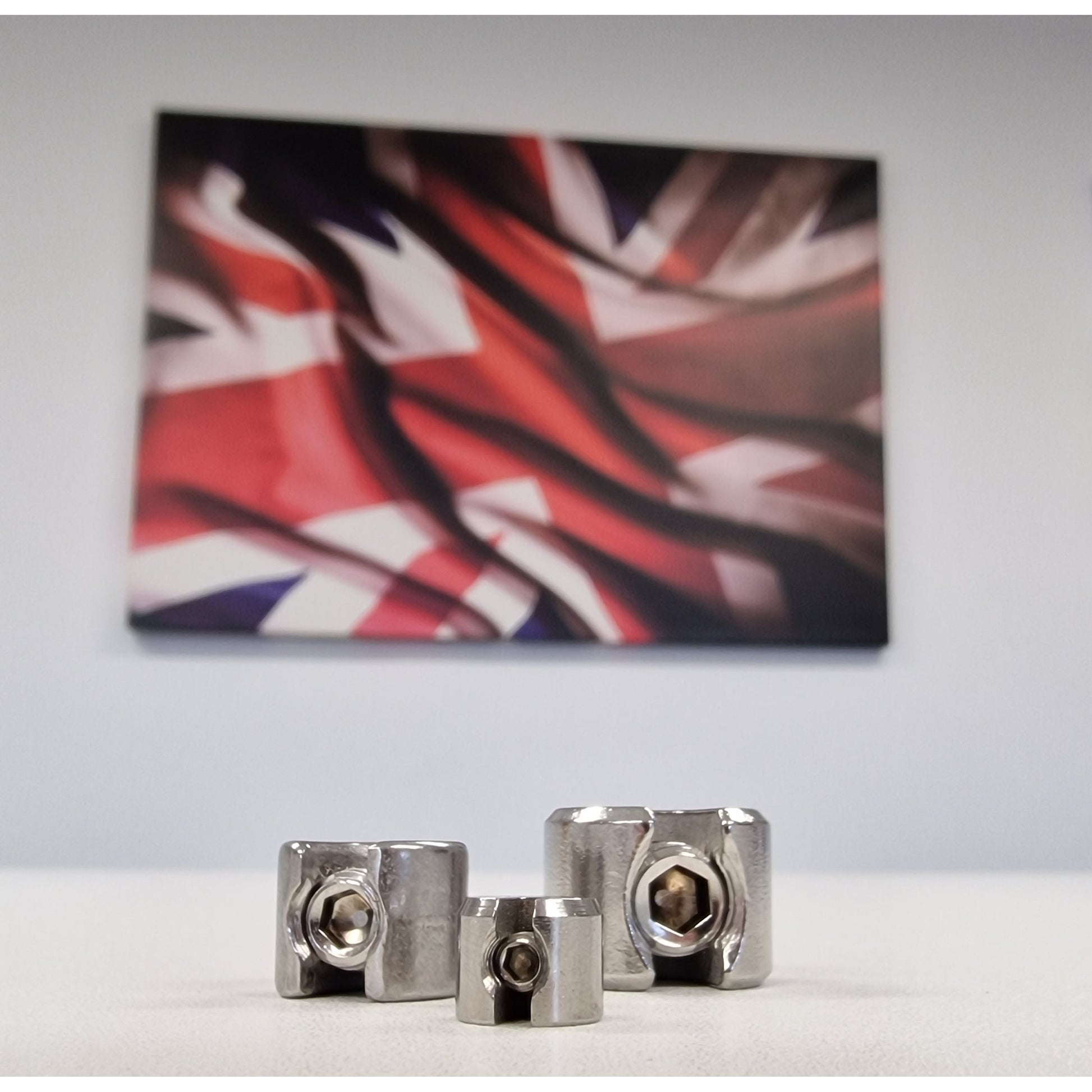

  • 3 Stainless Steel DIY stop fittings on a table with a flag background. TECNI 341.710.
1 4

M10 A4-AISI 316 Stainless Steel DIY Stop Fitting for 5mm & 6mm Cable - 351.710.006

M10 A4-AISI 316 Stainless Steel DIY Stop Fitting for 5mm & 6mm Cable - 351.710.006

£4.97 GBP
£4.97 GBP £4.97 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

351.710.006

97 in stock

M10 Stainless Steel DIY Stop fitting (suitable for 5mm & 6mm cable) - 351.710.006

Designed for locating purpose or suspension. Not suitable for lifting.

To install remove with 7x7 and 7x19 construction cable. They are not suitable for use with 1x19 as the fitting tends to slip.

Applications & Advice

  • Shop fitting and display
  • Catenary
  • Trellis

To install remove the M10 grub screw insert the cable into the slot then tighten the grub screw until secure.

Technical Info

They are not suitable for use with 1x19 as the fitting tends to slip.

Dimensions

d1: 20mm
d2: M10 RH x 1.5mm (Standard Metric Pitch)
L: 15mm
M:6.3mm

Downloads

Video

DIY Stop Video

View full details
