M12 A4-AISI 316 Stainless Steel Hook & Eye Turnbuckle - 308.501.012

M12 A4-AISI 316 Stainless Steel Hook & Eye Turnbuckle - 308.501.012

£17.67 GBP
£0.00 GBP £17.67 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

308.501.012

12 in stock

M12 Marine Grade Stainless Steel Hook & Eye Turnbuckle




Breaking Load: 1200kg

Ideal for tensioning 6mm to 8mm cable.

Internal diameter of eye: 18mm

Length fully closed: 300mm

Length fully open: 445mm




For further help or information please contact a member of the sales team.


* Please note that this is the manufacturer's approximate breaking load & not the working load limit

Applications & Advice

Instructions Sheets

Technical Info

Safety Sheet

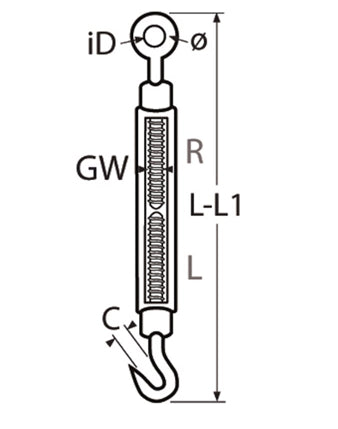

Dimensions

  • Material type: Stainless steel A4
  • Thread (GW): M12
  • Thread type: Metric thread
  • Inside diameter (iD): 18mm
  • Length (L): 455mm
  • Length 1 (L1): 300mm
  • Material-diameter (ø): 10.9mm
  • Width of opening (C): 14mm
