M12 A4-AISI 316L Stainless Steel Certified Lifting Eye Nut DIN 582 WLL 340 kg - 308.582.012
M12 A4-AISI 316L Stainless Steel Certified Lifting Eye Nut DIN 582 WLL 340 kg - 308.582.012
Product Code
SKU:308.582.012
48 in stock
Couldn't load pickup availability

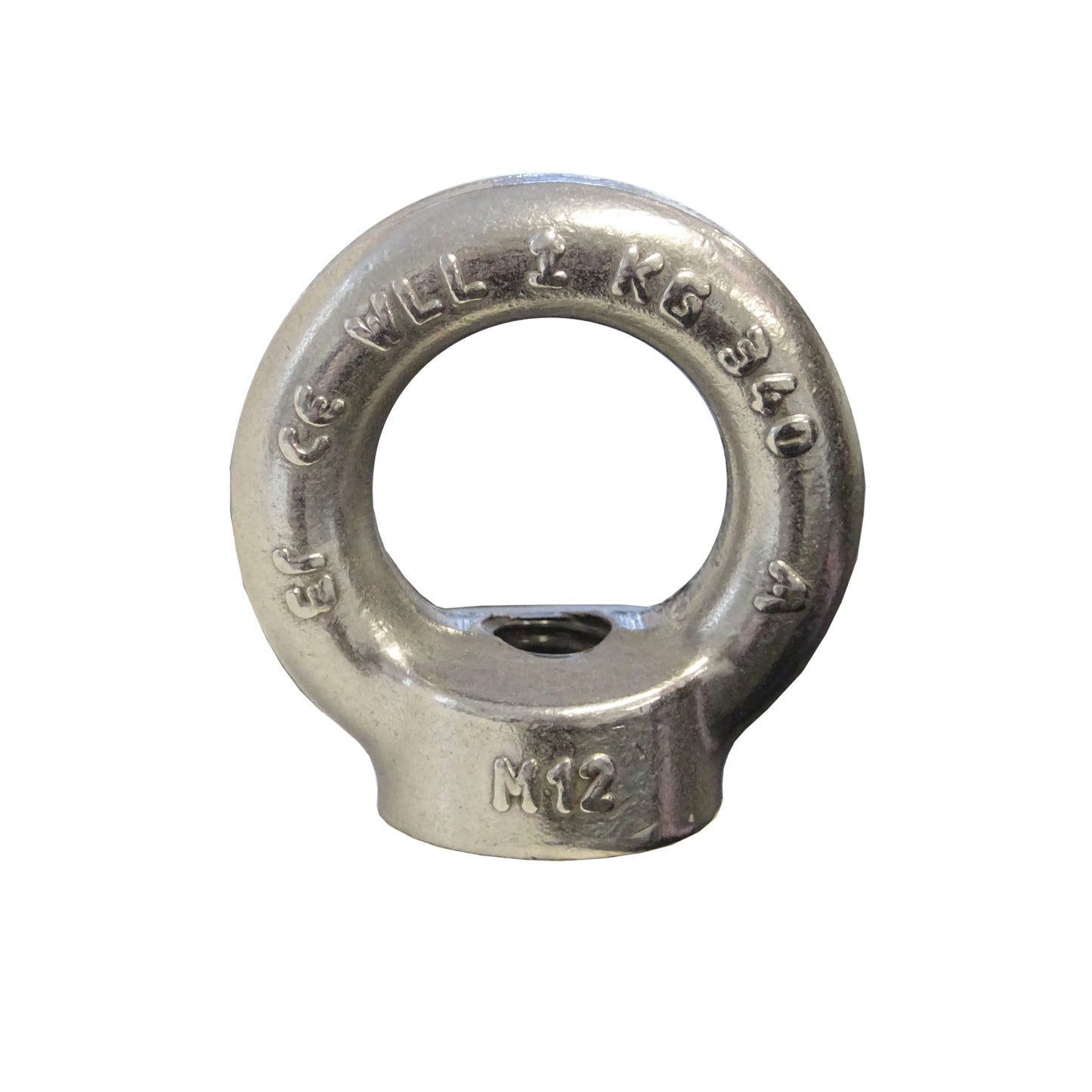

M12 316 Stainless Steel DIN582 Certified Lifting Eye Nut
WLL: 340kg
In accordance with DIN582:2010 our eye nuts are:
Tested - which includes 2 straight and 2 orthogonal pull tests.
Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.
Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.
Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.
Applications & Advice
Applications & Advice
Technical Info
Technical Info
Safety Regulations Sheet
Dimensions
Dimensions
Standard:To DIN 582
Material:A4-AISI 316L Stainless Steel
d1:M12 x 1.75mm (Standard Metric Pitch)
d2:30mm
d3:54mm
d4:30mm
e:11mm
h:53mm
k:12mm
m:14mm
Straight lift WLL1 kg:340
°45 lift WLL2 kg:240
°90 lift WLL3 kg:170
