M16 A4-AISI 316 Stainless Steel Eyebolt COMMERCIAL - 308.110.016
M16 A4-AISI 316 Stainless Steel Eyebolt COMMERCIAL - 308.110.016
Regular price
£14.95 GBP
Regular price
£0.00 GBP
Sale price
£14.95 GBP
Unit price
/
per
Shipping calculated at checkout.
Product Code
SKU:308.110.016
48 in stock
Couldn't load pickup availability
M16 316 Stainless Steel Eyebolt - Commercial
Manufacturers Breaking Load: 7000kg
Internal Eye Diameter: 35mm
Factor of Safety: 4:1
Similar to DIN480. Not suitable for lifting.
Applications & Advice
Applications & Advice

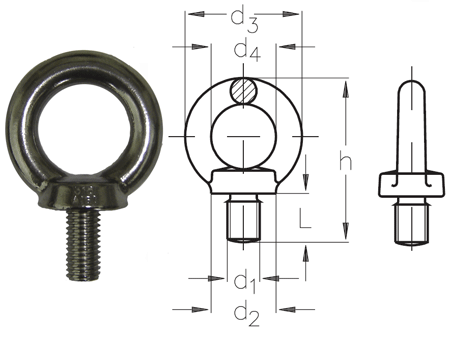

Dimensions
Dimensions
Material:A4-AISI 316 Stainless Steel
d1:M16 x 2mm (Standard Metric Pitch)
d2:35mm
d3:63mm
d4:35mm
h:87mm
L:27mm
Eye material thickness:15mm
