M16 A4-AISI 316L Stainless Steel Certified Lifting Eye Nut DIN 582 WLL 700 kg- 308.582.016
M16 A4-AISI 316L Stainless Steel Certified Lifting Eye Nut DIN 582 WLL 700 kg- 308.582.016
Product Code
SKU:308.582.016
90 in stock
Couldn't load pickup availability
M16 316 Stainless Steel DIN582 Certified Lifting Eye Nut
WLL: 700kg
In accordance with DIN582:2010 our eye nuts are:
Tested - which includes 2 straight and 2 orthogonal pull tests.
Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.
Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.
Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.
Applications & Advice
Applications & Advice
Technical Info
Technical Info
Safety Regulations Sheet

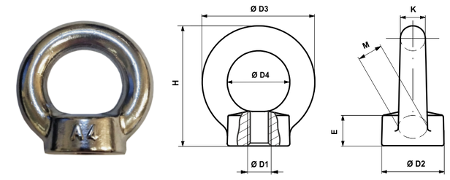

Dimensions
Dimensions
Standard:To DIN 582
Material:A4-AISI 316L Stainless Steel
d1:M16 x 2mm (Standard Metric Pitch)
d2:35mm
d3:63mm
d4:35mm
e:13mm
h:62mm
k:14mm
m:16mm
Straight lift WLL1 kg:700
°45 lift WLL2 kg:500
°90 lift WLL3 kg:350
