M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016
M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016
Product Code
SKU:106.053.016
81 in stock
Couldn't load pickup availability
M16 Zinc Plated Lifting Eyebolt DIN 580 WLL: 700 kgs - 106.053.016 (Supplied with Inspection certificate UNI EN10204 type 3.1)
In accordance with DIN580:2010 our eyebolts are:
Tested - which includes 2 straight and 2 orthogonal pull tests.
Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.
Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.
Applications & Advice
Applications & Advice
Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.
Technical Info
Technical Info
Manufactured from Aluminium killed Carbon Steel C15E (EN 10084/98) - White zinc-plated (minimum 8 microns)

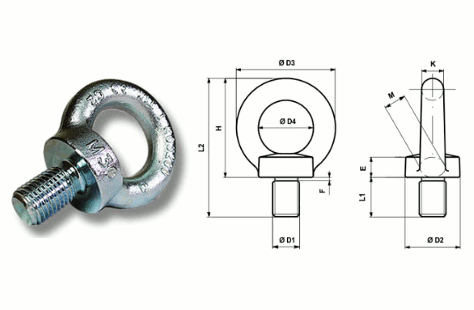

Dimensions
Dimensions
D1: M16 x 2mm (Standard Metric Pitch)
D2: 35mm
D3: 63mm
D4: 35mm
E: 12mm
F: 4mm
G: 13mm
H: 62mm
K: 14mm
L: 27mm
M: 16mm
