M24 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 WLL 1800 kgs - 106.051.024

M24 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 WLL 1800 kgs - 106.051.024

Regular price £33.58 GBP
Regular price £0.00 GBP Sale price £33.58 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

SKU:106.051.024

36 in stock

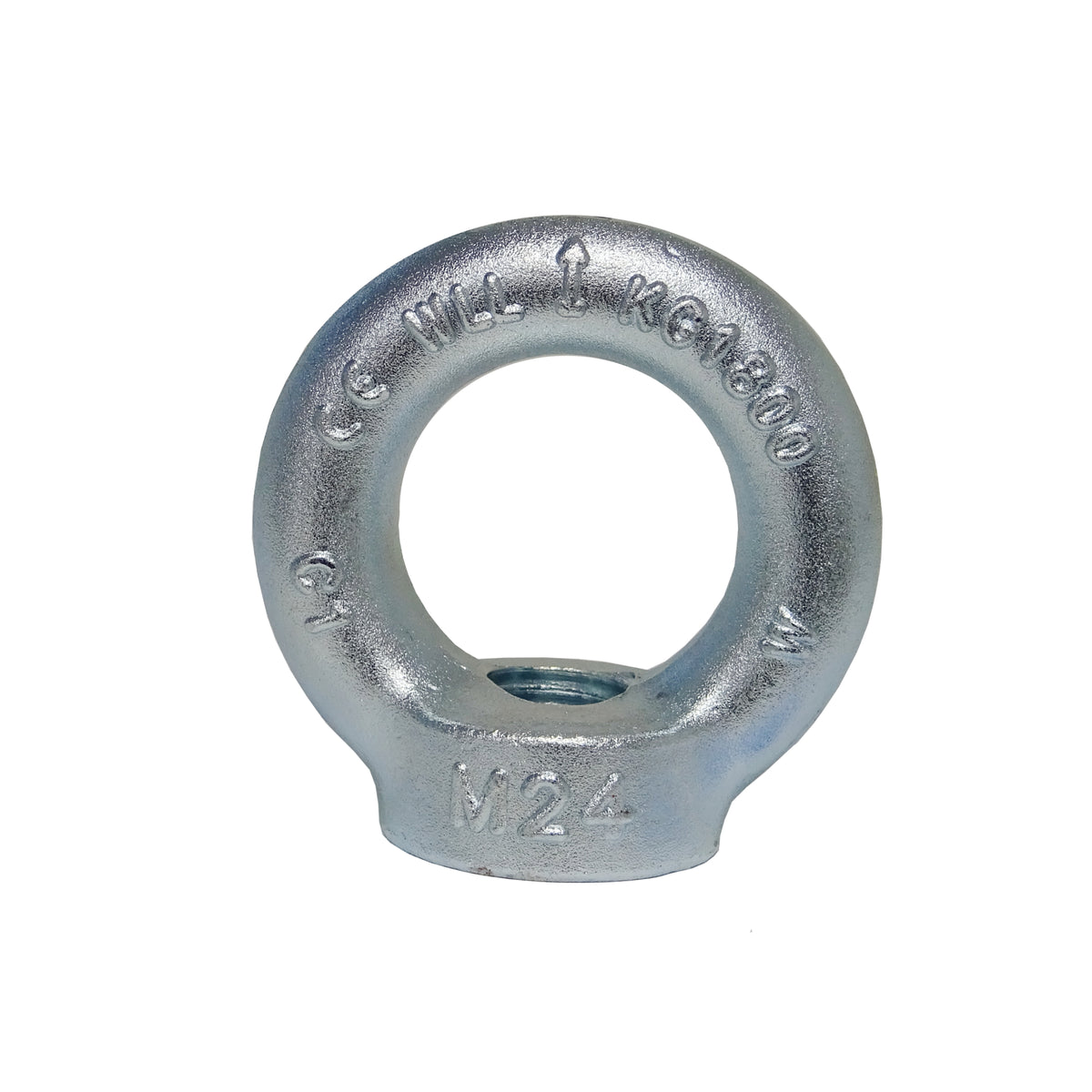

M24 White Zinc Plated DIN582 Certified Lifting Eye Nut

WLL: 1800kg

In accordance with DIN582:2010 our eye nuts are:

Tested - which includes 2 straight and 2 orthogonal pull tests.

Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.

Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.

Manufactured from Aluminium killed Carbon Steel C15E (EN 10084/98) - White zinc-plated (minimum 8 microns)

Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.

Applications & Advice

Technical Info

Dimensions

D1: M24 x 3mm
D2: 50mm
D3: 90mm
D4: 50mm
E: 20mm
H: 90mm
K: 20mm
M: 24mm
