M6 Galvanised Hook & Eye Turnbuckle DIN1480 - 166.051.006
M6 Galvanised Hook & Eye Turnbuckle DIN1480 - 166.051.006
Regular price
£1.53 GBP
Regular price
£0.00 GBP
Sale price
£1.53 GBP
Unit price
/
per
Shipping calculated at checkout.
Product Code
SKU:166.051.006
Couldn't load pickup availability
M6 DIN 1480 Galvanised Hook & Eye Turnbuckle
Ideal for tensioning 6mm to 8mm cable.
Internal diameter of eye: 16mm
Length fully closed: 241mm
Length fully open: 324mm
For further help or information please contact a member of the sales team.
Applications & Advice
Applications & Advice
Technical Info
Technical Info
Dimensions
Dimensions

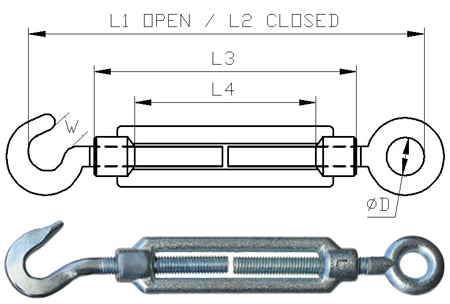

See photo above:
Thread:M6
D:9mm
W:8mm
L1:258mm
L2:172mm
L3:110mm
L4:85mm
