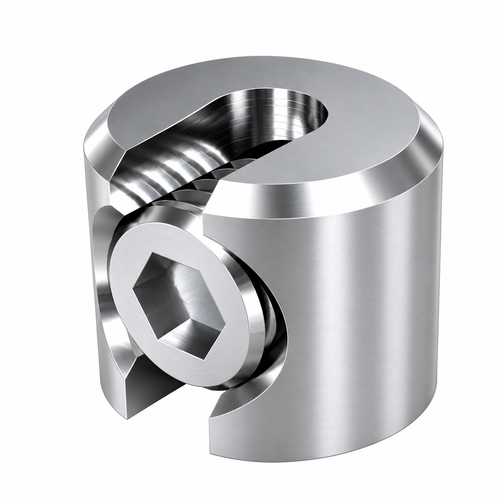

• Metallic circular C shaped clip with a hex screw on a white background. TECNI 351.710
  • Dimensional drawing of a DIY Stop fitting on a white background
  • 3 Stainless Steel DIY stop fittings on a table with a flag background. TECNI 341.710.
1 4

M8 A4-AISI 316 Stainless Steel DIY Stop Fitting for 3mm & 4mm Cable - 351.710.004

M8 A4-AISI 316 Stainless Steel DIY Stop Fitting for 3mm & 4mm Cable - 351.710.004

£3.33 GBP
£3.33 GBP £3.33 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

351.710.004

222 in stock

M8 Stainless Steel DIY Stop fitting (suitable for 3mm & 4mm cable) - 351.710.004

Designed for locating purpose or suspension. Not suitable for lifting.

Designed for use with 7x7 and 7x19 construction cable. They are not suitable for use with 1x19 as the fitting tends to slip.

Applications & Advice

  • Shop fitting and display
  • Catenary
  • Trellis

To install remove the M8 grub screw insert the cable into the slot then tighten the grub screw until secure.

Technical Info

They are not suitable for use with 1x19 as the fitting tends to slip.

Dimensions

d1: 15mm
d2: M8 RH x 1.25mm (Standard Metric Pitch)
L: 12mm
m: 4.3mm

Downloads

Video

DIY Stop Video
