M8 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 Certified WLL 140 kgs - 106.051.008
M8 White Zinc-Plated (BZP) Lifting Eyenut DIN 582 Certified WLL 140 kgs - 106.051.008
Product Code
SKU:106.051.008
245 in stock
Couldn't load pickup availability

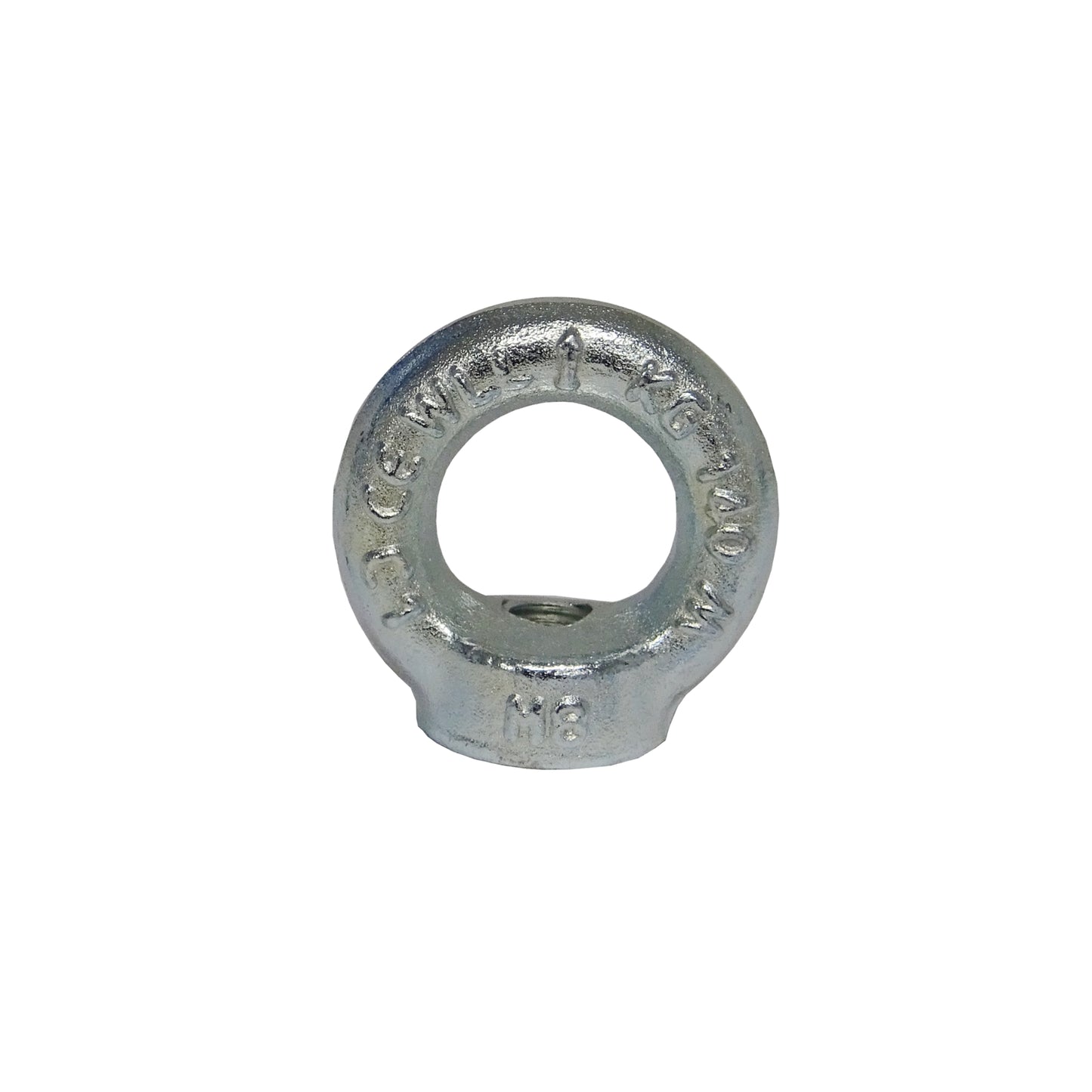

M8 White Zinc Plated DIN582 Certified Lifting Eye Nut
WLL: 140kg
In accordance with DIN582:2010 our eye nuts are:
Tested - which includes 2 straight and 2 orthogonal pull tests.
Marked - with the manufacturers brand, CE mark, lot number, straight lift Working Load Limit (WLL) and arrow indicating lift direction.
Certified - supplied with Inspection Certificate 3.1 EN10204, material and chemical analysis.
Manufactured from Aluminium killed Carbon Steel C15E (EN 10084/98) - White zinc-plated (minimum 8 microns)
Suitable for use in temperatures ranging from -20°C to +200 °C (In Fahrenheit degrees: -4°F / +392°F) without a reduction in their lifting capacity.
Applications & Advice
Applications & Advice
Technical Info
Technical Info
Dimensions
Dimensions
D1:M8 x 1.25mm
D2:20mm
D3:36mm
D4:20mm
H:36mm
K:8mm
M:10mm
