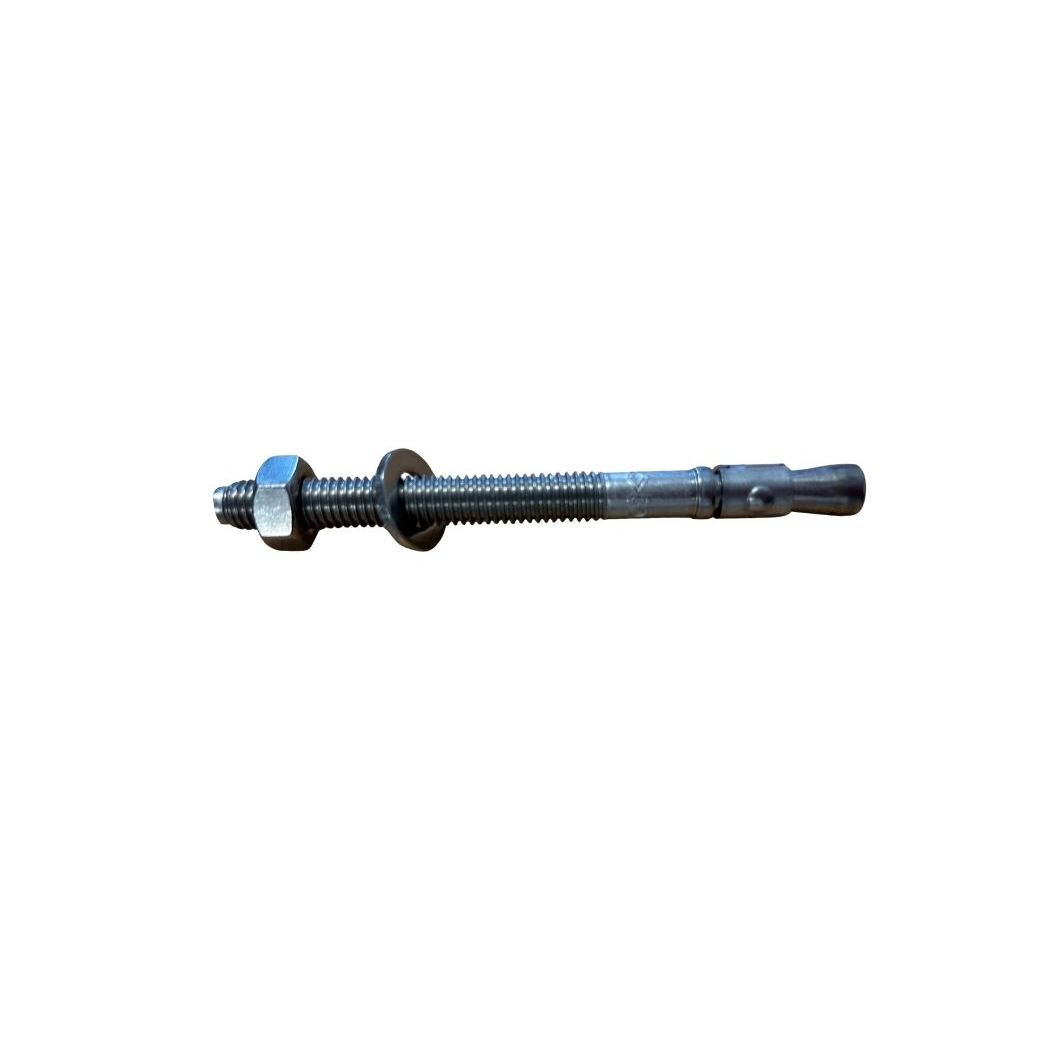

• Metal Anchor bolt with hex nut on a white background
  • Metal Anchor bolt with a hex head on a white background
1 2

M8 x 120mm A4 AISI 316 SS Anchor Bolt - Through Bolt - 163.120.658

M8 x 120mm A4 AISI 316 SS Anchor Bolt - Through Bolt - 163.120.658

£3.02 GBP
£3.02 GBP £3.02 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

163.120.658

40 in stock

JCP M8x120mm A4-AISI 316 Stainless Steel Through Bolt c/w Nut & Washer - TSS08120

Heavy duty fastener for concrete, designed for through fixing where the fixture's clearance hole matches the drill hole

35mm embedment into wall and 85mm of visible thread.

Tightening torque 15Nm

Applications & Advice

Key Specifications:

  • M8: Metric thread size, 8mm nominal diameter.
  • 120mm: Total length of the bolt.
  • Hole Size: Requires an 8mm diameter hole in the concrete.
  • Fixture Clearance: The item being fixed needs a 10mm clearance hole (slightly larger than the bolt's M8 diameter) for the bolt to pass through.
  • Installation: Drilled into concrete, the expanding clip (or wedge) is set by tightening the nut, gripping the concrete for a strong hold
