M5 RH x 30mm A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.405

M5 RH x 30mm A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.405

£4.74 GBP
£0.00 GBP £4.74 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

208.515.405

57 in stock
  • AISI 316 grade stainless steel studding
  • Highly corrosion resistant
  • Polished stainless finish
  • Many M5 fittings in stock
  • Precision-cut thread

This M5 RH stainless steel dual threaded stud has a 30mm metric & 43mm wood screw thread. Perfect for balustrading, architectural, garden trellises & many other applications.

Applications & Advice

Always drill a pilot hole to prevent wood from splitting and to ease installation. You can use a socket drive to install this item by fitting a dome nut or two nuts locked off together on the end of the thread. The machine thread section can also be fitted directly into the chuck of a drill and this can then be used to drive the fitting into the pilot hole. Keep drill torque settings and drill speed as low as possible to prevent damage to the thread.

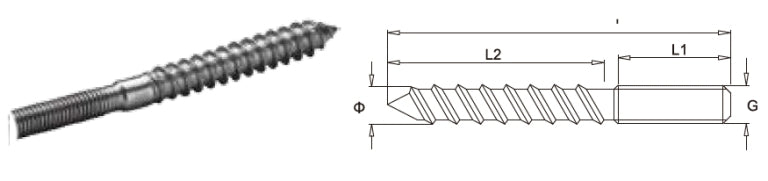

Dimensions

G: M5

L1: 31mm

L2: 44mm

Overall size: 82mm
