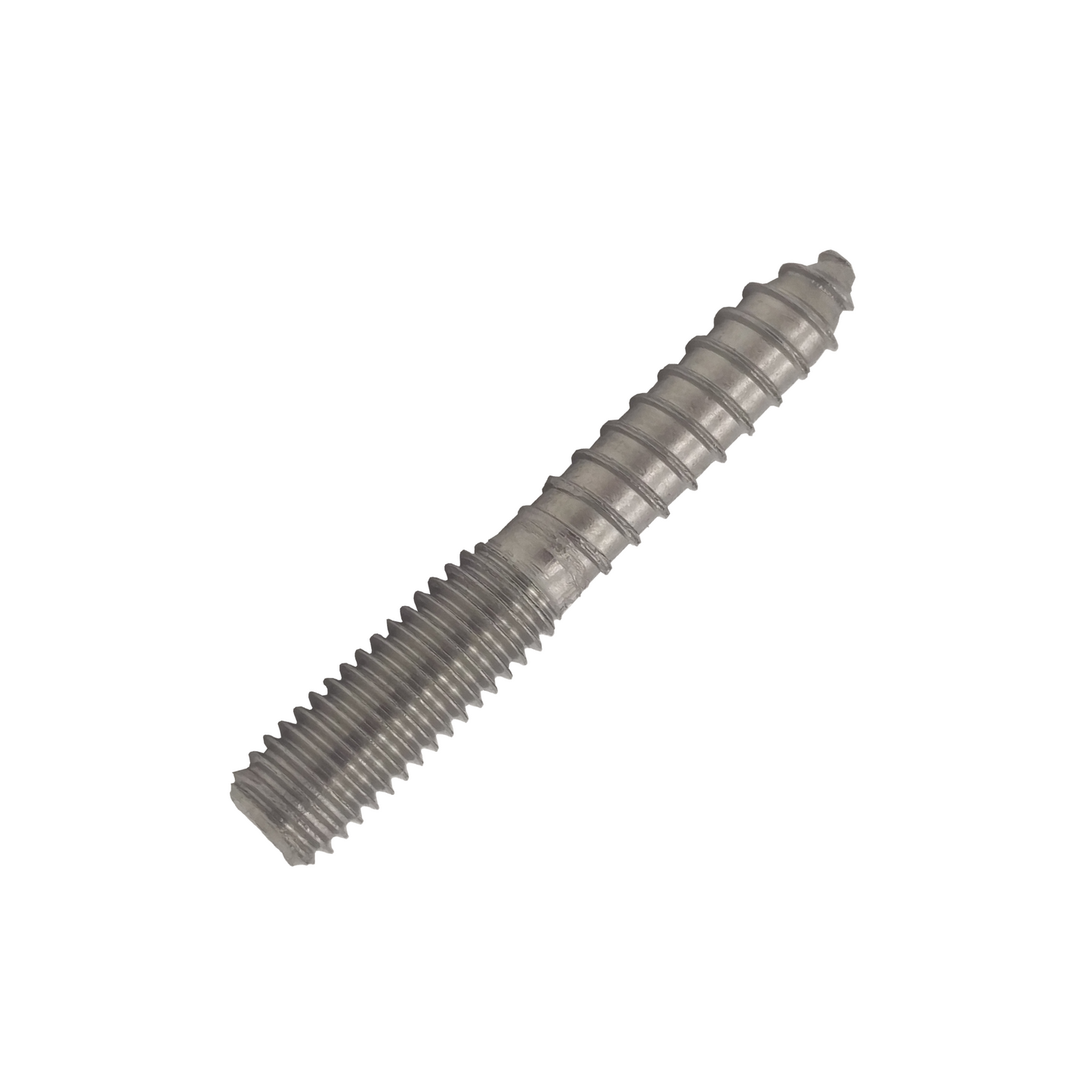

• A stainless steel dual threaded screw on a white background.
  • Technical drawing of a screw with labeled dimensions on a white background
1 2

M8x23mm RH A2-AISI 304 Stainless Steel Dual Thread Dowel Screw - 208.517.408

M8x23mm RH A2-AISI 304 Stainless Steel Dual Thread Dowel Screw - 208.517.408

£0.88 GBP
£0.88 GBP £0.88 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

208.517.408

562 in stock

The M8 Right Hand Dual Threaded Stud is manufactured from corrosion-resistant A2 AISI 304 stainless steel, featuring a polished finish suitable for a range of indoor and outdoor applications.

With a precision-cut 23mm metric thread and 27mm wood screw thread, this fitting provides a secure connection for timber installations, including cable balustrading, architectural fittings and garden trellis systems.

Also known as a hanger bolt or wood-to-metal dowel screw, it offers a practical fixing solution for compatible M8 female-threaded components.

Applications & Advice

Typical Applications:

  • Cable balustrading systems
  • Garden trellis and green wall installations
  • Architectural cable fittings
  • Timber-mounted fixing systems
  • General-purpose outdoor applications

Always drill a suitable pilot hole to prevent timber splitting and ensure easier installation. The stud can be installed using a socket drive with a dome nut or two nuts locked together on the machine thread. Alternatively, the machine-threaded section can be secured directly into a drill chuck to drive the fitting into the pilot hole.

Use a low drill speed and torque setting to prevent damage to the threads.

Ensure connecting fittings have a compatible M8 right-hand female thread.

Dimensions

d: 8mm

I: 50mm

H: 37mm

M: 11mm
