M8 RH x 40mm A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.408

M8 RH x 40mm A4-AISI 316 Stainless Steel Dual Double Thread Screw - 208.515.408

£2.70 GBP
£0.00 GBP £2.70 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

208.515.408

1519 in stock
  • AISI 316 grade stainless steel studding
  • Highly corrosion resistant
  • Polished stainless finish
  • Precision-cut thread

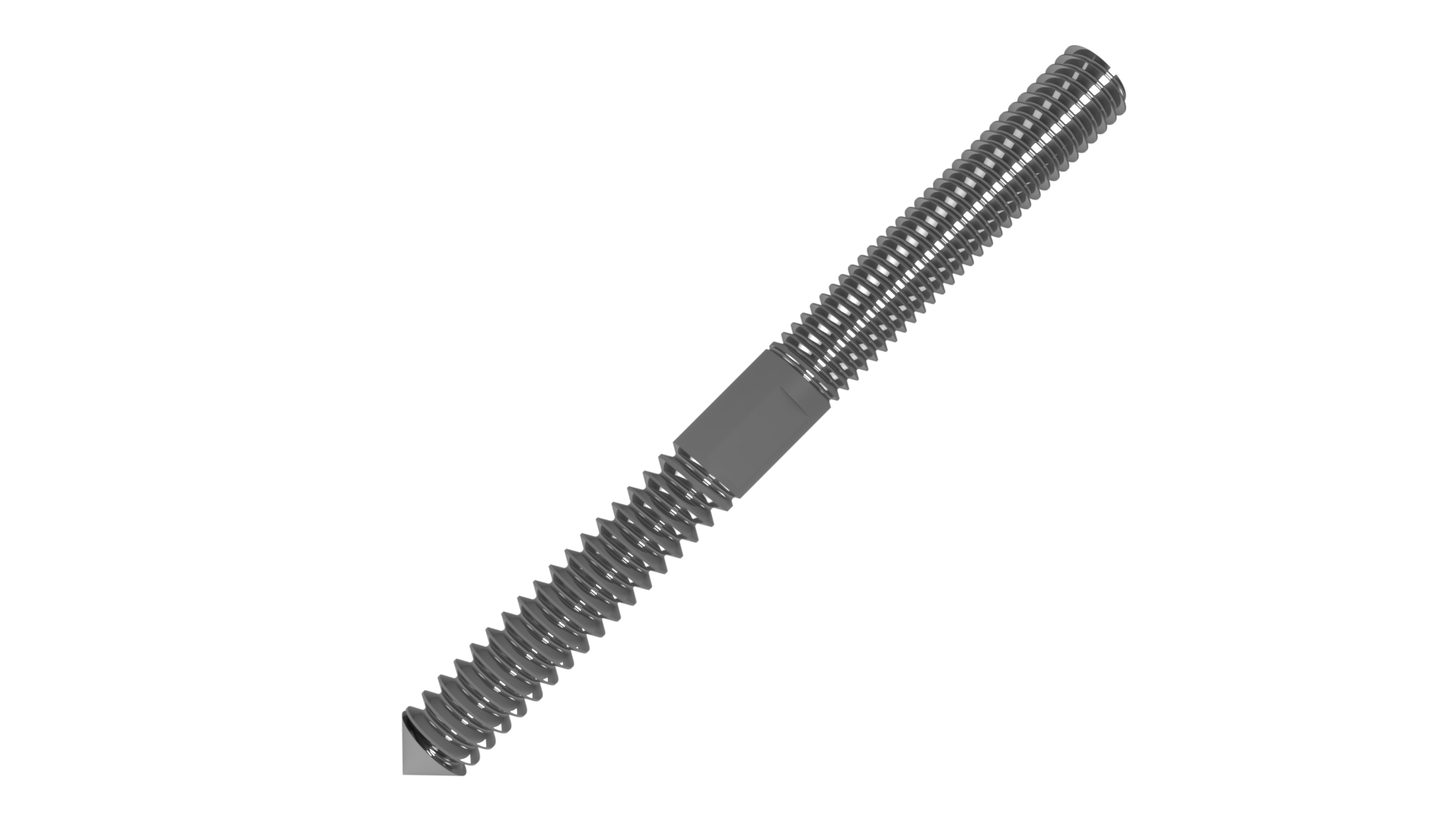

This M8 RH stainless steel dual threaded stud has a 40mm metric & 40mm wood screw thread. Perfect for balustrade, architectural, garden trellises & many other applications.

Also known as metal to wood dowel screws and hanger bolts.

Applications & Advice

Always drill a pilot hole to prevent wood from splitting and to ease installation. You can use a socket drive to install this item by fitting a dome nut or two nuts locked off together on the end of the thread. The machine thread section can also be fitted directly into the chuck of a drill and this can then be used to drive the fitting into the pilot hole. Keep drill torque settings and drill speed as low as possible to prevent damage to the thread.

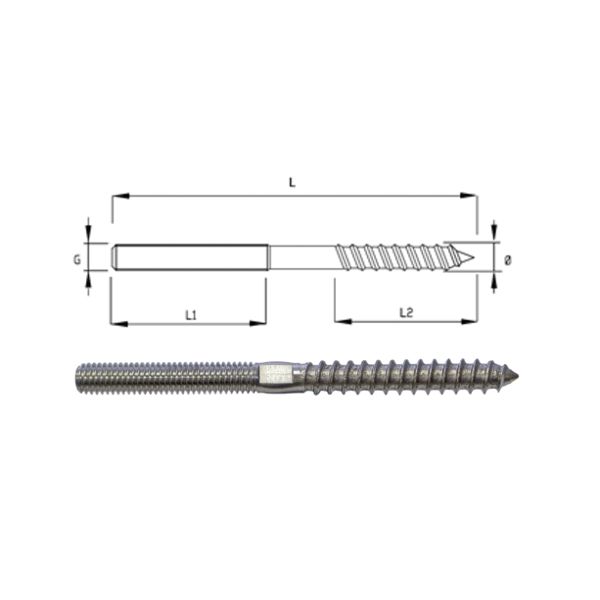

Dimensions

G Thread: M8 RH
L: 90mm
L1: 40mm
L2: 40mm
