3mm M5 RH Mini A4-AISI 316 Stainless Steel Swage Stud Terminal - 311.010.005

• Suitable for 3mm cable
• Provides very strong & reliable termination
• Ideal for balustrading & suspended systems
• Swaging tools & equipment available from stock
• Assemblies manufactured to order

This M5 RH A4-AISI 316 stainless steel Mini stud terminal for 3mm cable is perfect for applications such as balustrading or suspended systems. To fit, simply insert cable into the opening and swage using a hydraulic press. Tecni-Cable can also manufacture assemblies to your design & specification - please call for details.

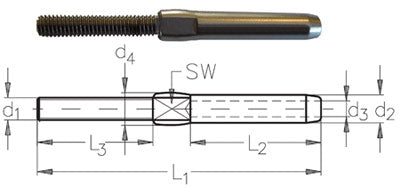

Fitting Dimensions:
Fits Cable Diameter: 3mm
d1: M5 RH x 0.8mm (Standard Metric Pitch)
d2: 6.3mm
d3: 3.3mm
d5: 7mm
L1: 58mm
L2: 27mm
L3: 25mm
SW: 5mm
