TECNI® Gripper TG1.2 M8 Fine Thread Glider for use with 1.2mm cable - 170.012.002

TECNI® Gripper TG1.2 M8 Fine Thread Glider for use with 1.2mm cable - 170.012.002

£1.82 GBP
£0.00 GBP £1.82 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

170.012.002

2833 in stock

Suitable for use with TECNI® 0.8 - 1.2mm uncoated cable, in 7x7 or 7x19 construction.

WLL with 0.8mm cable - 6kg

WLL with 1mm cable - 8kg

WLL with 1.2mm cable - 12kg

M8 Fine thread suitable for use with M8 washer and fine thread nut.

Applications & Advice

Suitable for suspending items such as light fittings, display panels and shelves up to a weight of 12kg when used alongside similar load rated fittings.

To be used with a nut or female connector with an M8 fine thread (M8X1) when no threaded insert is available.

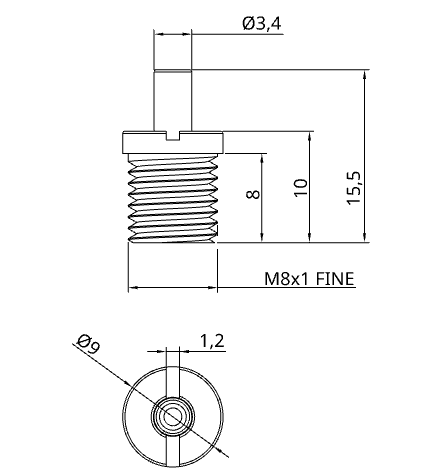

Dimensions

Dimensions

Downloads

Safe use Datasheet

Technical Information

Video

Video

View full details
