TECNI® YCF-630 Manual Hydraulic Crimper with Die Sets - 101.630.900
TECNI® YCF-630 Manual Hydraulic Crimper with Die Sets - 101.630.900
Product Code
SKU:101.630.900
In stock
Couldn't load pickup availability
The TECNI YCF-630 Manual Hydraulic Crimper is a high-performance hydraulic crimping tool which delivers 31.75 tonnes of crimping force and a maximum working pressure of 700kgf/cm2 (10,000 psi). Designed for demanding cable and wire rope termination applications, it provides powerful, controlled and reliable crimping performance for professional workshop and on-site use.
The contents of this kit include; YCF-630 tool, two steel carrying boxes, and 7 x hardened die sets.
Safety critical applications should be verified via testing.
Applications & Advice
Applications & Advice
Suitable for use with:
- Code 6 - 11 Copper Ferrules
- Code 6 - 12 Aluminium Ferrules
- 3mm to 5mm diameter Cable and Wire Rope requiring Hexagonally Swaged Stainless Steel Fittings.
Not Suitable for Crimping Stainless Steel Ferrules.
Technical Info
Technical Info

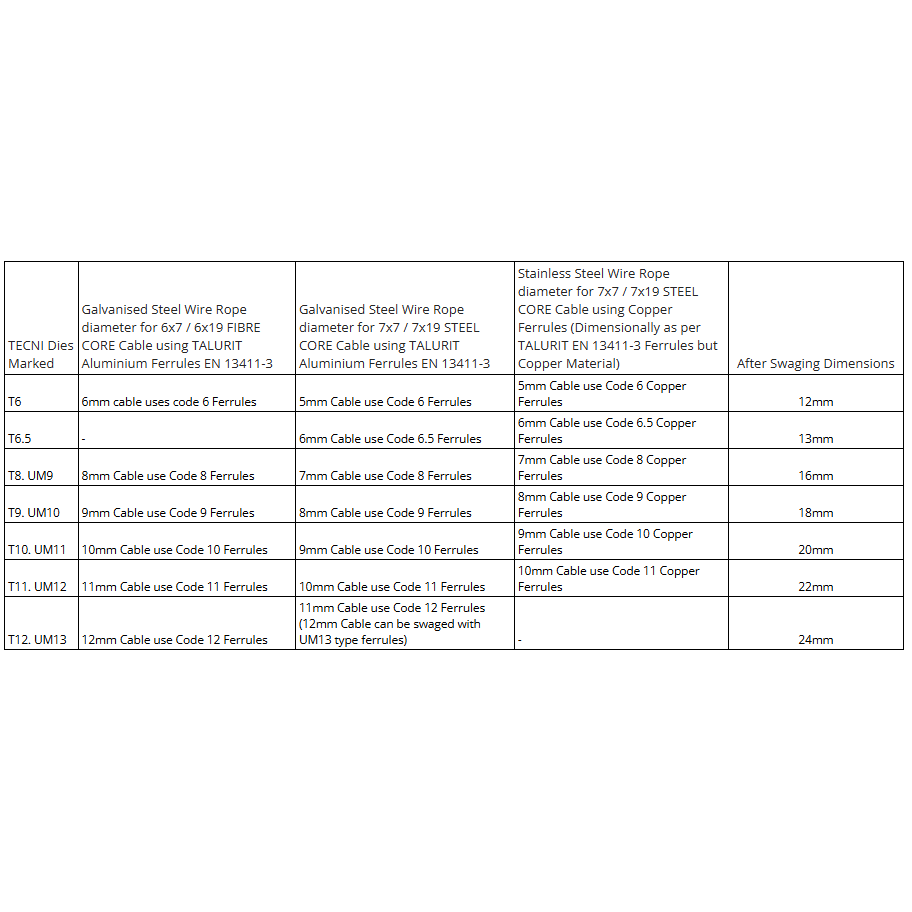

TALURIT Aluminium and Copper Ferrules from T6 (or TCU6) and above finish at twice their size once correctly swaged.
E.g. A Code T6 ferrule will finish at 12mm diameter and a T10 ferrule will finish at 20mm diameter.
Recommended Grade of Oil: ISO 32 Hydraulic Oil
Dimensions
Dimensions
- Hand Pump weight = 10 kgs
- Hand Pump weight with Steel Carrying Box = 14.5 kgs
- Press Head without Dies = 15 kgs
- Press Head with Dies = 17 kgs
- Press Head with Dies and Steel Carrying Box = 31.5 kgs
- Press Head, All Dies, Hand pump and both Carrying Boxes = 46 kgs
