TECNI GYM 4mm A4 AISI 316 Stainless Steel Swage 15mm Disc End Stop Terminal - 208.040.015

TECNI GYM 4mm A4 AISI 316 Stainless Steel Swage 15mm Disc End Stop Terminal - 208.040.015

£2.52 GBP
£2.52 GBP £2.52 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

208.040.015

498 in stock

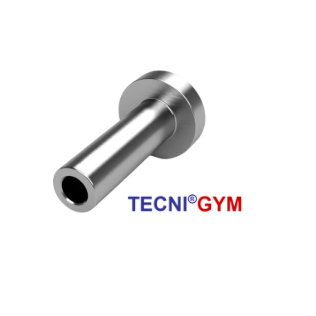

The TECNI GYM 15mm Swage Disc End Stop Terminal is a high-quality wire rope termination designed for gym and fitness equipment cable assemblies. Manufactured from marine-grade A4 AISI 316 stainless steel, it offers exceptional corrosion resistance and long-term durability in demanding commercial environments.

Designed for use with 4mm diameter wire rope, this fitting is commonly found on cable-driven gym equipment and similar fitness machines. The terminal is permanently attached to the wire rope using a hydraulic swaging process, creating a secure and reliable end stop.

YCP 240C crimp tool available to purchase separately.

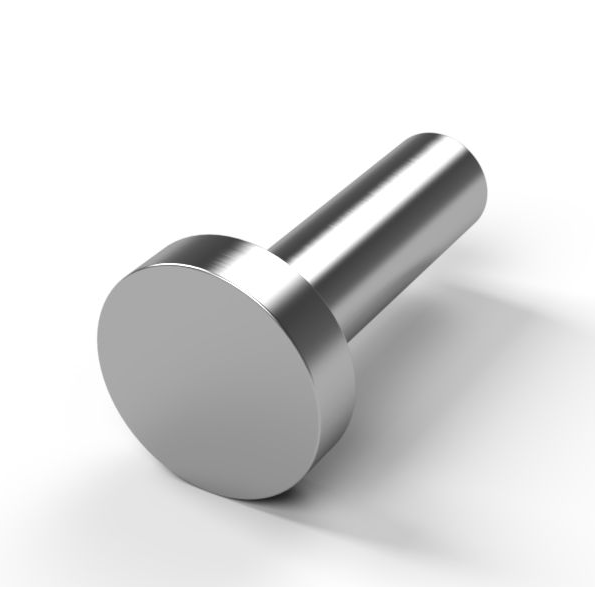

Its precision-machined construction and polished stainless steel finish ensure consistent performance making it ideal for replacement cable assemblies.

Applications & Advice

Suitable for use on:

  • Commercial gym equipment
  • Fitness machine cable systems
  • Replacement wire rope assemblies
  • Exercise and resistance equipment

Installation Advice

  • Designed for use with 4mm diameter wire rope.
  • Must be installed using a suitable hydraulic swaging machine.
  • For safety and performance, swaging should be carried out in accordance with recognised wire rope assembly practices.
  • Always inspect cables and fittings regularly and replace worn components immediately.

Dimensions

Disc Diameter (A) - 15mm

Disc Thickness (B) - 4mm

Body Length (C) - 25mm

Overall Length (D) - 29mm

Body Diameter (E) - 7.5mm

Wire Rope Diameter - 4mm

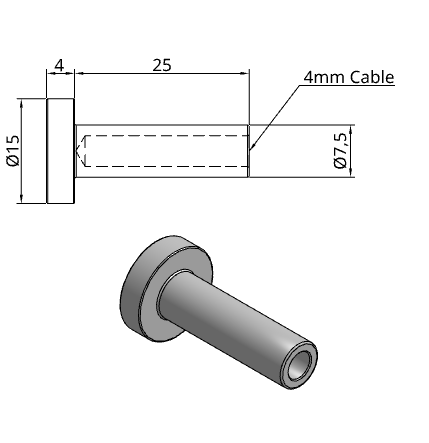

See technical drawing for full dimensional details.

Downloads

Technical Information

Product Code 208.040.015

Material A4 AISI 316 Stainless Steel

Fitting Type Swage Disc End Stop Terminal

Installation Method Hydraulic Swaging

Wire Rope Diameter 4mm

Suitable Environment Indoor & Outdoor
