Type 15 Gripper, Shelf Holder for use with up to 1.5mm cable WLL of 25kg - 193.000.146
Type 15 Gripper, Shelf Holder for use with up to 1.5mm cable WLL of 25kg - 193.000.146
Product Code
SKU:193.000.146
101 in stock
Couldn't load pickup availability
The Reutlinger Type 15 Bottom B20 Shelf Holder Cable Gripper is a compact, precision-engineered suspension fitting designed for use with 1mm to 1.5mm steel wire rope.

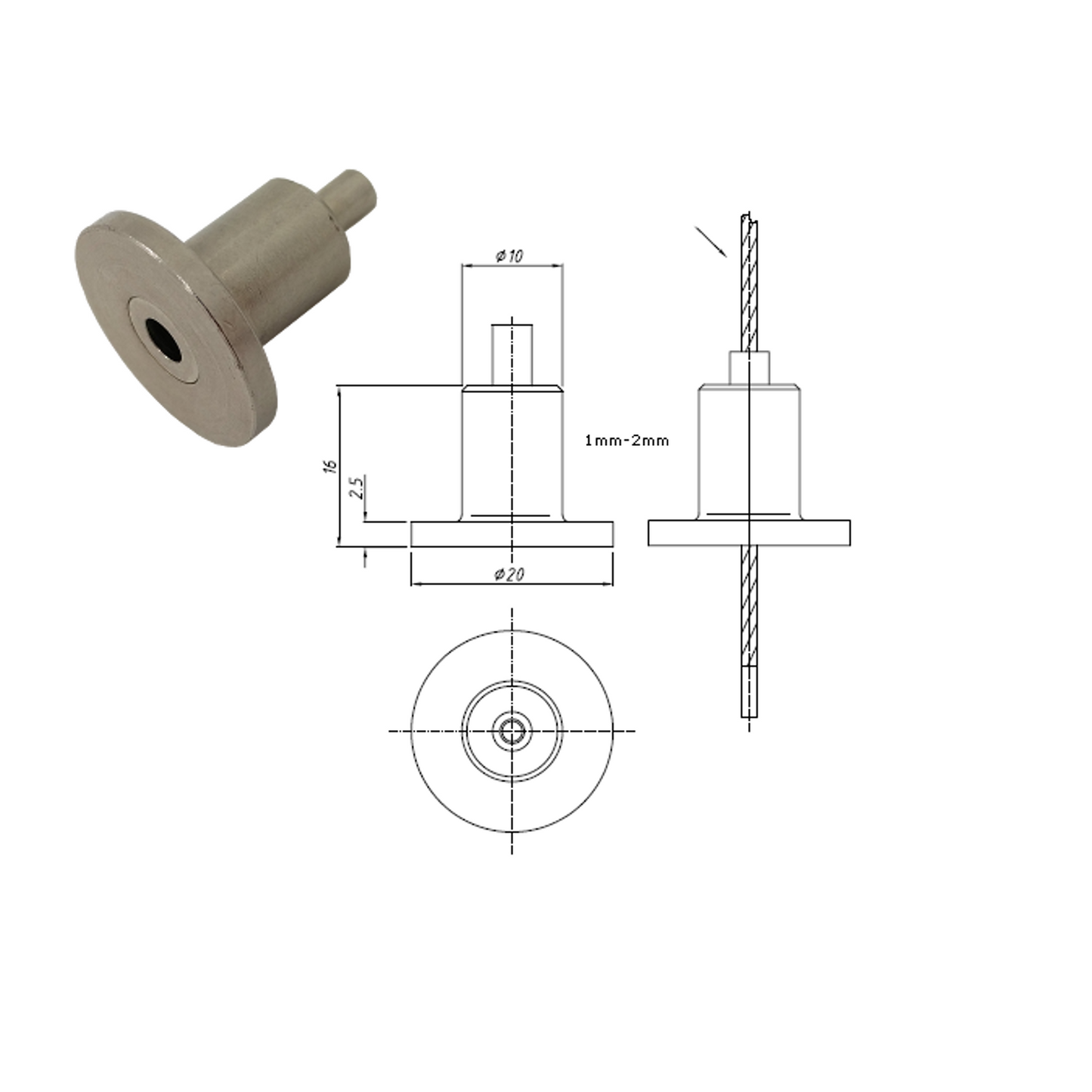

Featuring a 20mm diameter flange and a 10mm diameter body, this cable gripper provides a discreet and adjustable solution for suspended shelving, retail displays and shop fitting applications.
The fitting is specifically designed for installations where the suspension cable passes directly through a shelf, providing a neat and professional finish.
Its integrated ball-bearing gripping mechanism securely holds the cable in position while allowing quick and precise adjustment without specialist tools.
The compact design makes it ideal for creating adjustable suspension systems where appearance, reliability and ease of installation are important.
Applications & Advice
Applications & Advice
Applications
- Suspended shelving systems
- Retail shop fittings and merchandising displays
- Exhibition stands and display installations
- Adjustable shelf suspension systems
- Interior architectural installations
- Decorative wire rope suspension systems
- Bespoke display and presentation systems
- Commercial display installations
Installation Advice
The Reutlinger Type 15 Bottom B20 Shelf Holder is designed for use with compatible 1mm to 1.5mm steel wire rope.
The fitting is intended for installations where the suspension cable passes through a shelf or display panel.
Position the cable gripper within the prepared installation, ensuring that the flange provides suitable support against the shelf.
Insert the cable through the gripper. The internal ball-bearing mechanism automatically grips the cable when tension is applied.
Adjust the cable to the required position, ensuring that the shelf is level and correctly supported.
For suspended shelving installations, use a suitable number of suspension points to distribute the load evenly.
Important Installation Information
- Use only compatible cable diameters and constructions.
- Ensure the shelf material and installation arrangement are suitable for the intended load.
- Check that the supporting structure and all suspension components are adequately rated.
- Ensure the cable is clean, undamaged and free from deformation.
- Do not exceed the applicable working load limit.
- Do not adjust the gripper while supporting a load.
- The complete suspension system must be assessed for its intended application.
- Not rated for lifting.
Technical Info
Technical Info
WORKING LOAD LIMITS (WLL)
7x7 Galvanised Steel Wire Rope:
1.0mm Cable – WLL 13kg
1.2mm Cable – WLL 17kg
1.5mm Cable – WLL 25kg
7x7 Stainless Steel Wire Rope:
1.0mm Cable – WLL 8kg
1.2mm Cable – WLL 15kg
1.5mm Cable – WLL 20kg
MANUFACTURER'S LOAD SPECIFICATIONS
Galvanised Cable Tensile Strength: 2,300 N/mm²
Stainless Steel Cable Tensile Strength: 1,570 N/mm²
Manufacturer's Safety Factor: 5:1
IMPORTANT INFORMATION
The working loads listed are Reutlinger's published ratings for the Type 15 gripping mechanism when used with the specified wire rope.
Working load limits depend on cable diameter, construction, material and tensile strength.
The complete suspension system, including the cable, gripper, shelf, mounting components and supporting structure, must be assessed for its intended application.
Do not exceed the working load limit of the lowest-rated component.
Not rated for lifting.
