Type 18 M6 Female Hinged Gripper for use with up to 1.8mm cable WLL of 30kg - 193.000.065
Type 18 M6 Female Hinged Gripper for use with up to 1.8mm cable WLL of 30kg - 193.000.065
Product Code
SKU:193.000.065
84 in stock
Couldn't load pickup availability
-

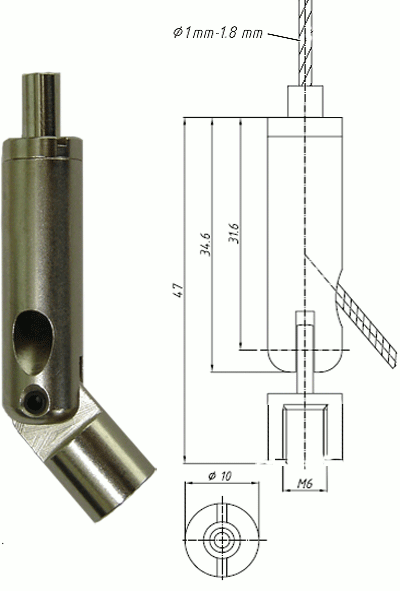

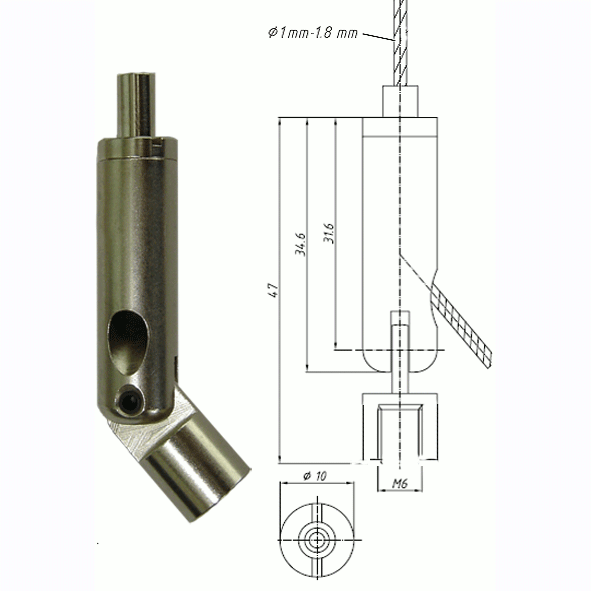

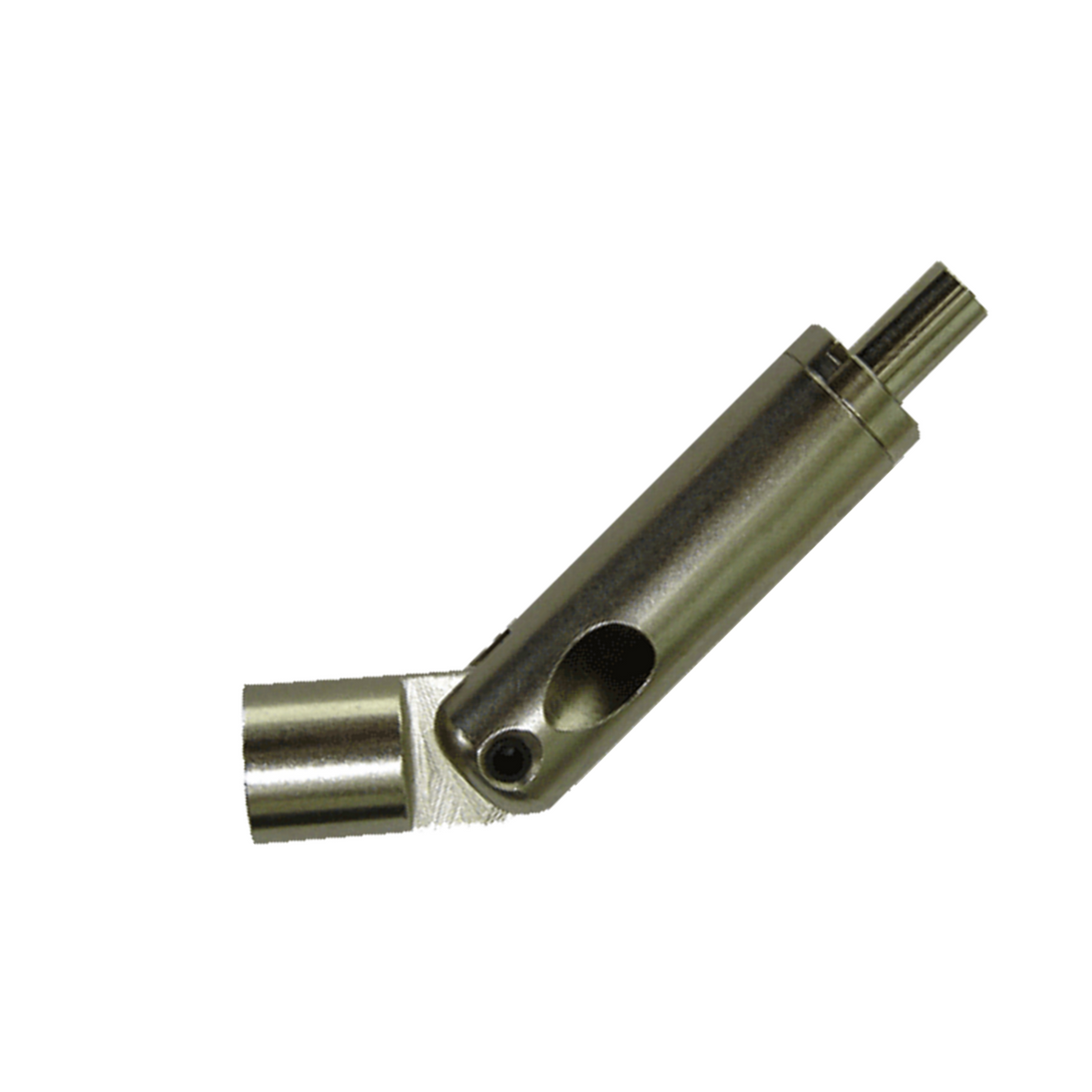

The Reutlinger Type 18 M6 Female Hinged Cable Gripper is a compact, precision-engineered suspension fitting designed for use with 1mm to 1.8mm steel wire rope.
Featuring an adjustable hinged connection and an M6 female thread, this versatile cable gripper provides a secure and flexible solution for suspended displays, lighting installations, shop fittings and architectural suspension systems.
The hinged design allows the fitting to articulate through approximately 180°, making it particularly suitable for installations where the cable needs to be positioned at an angle rather than vertically.
Its integrated ball-bearing gripping mechanism allows the cable to be inserted and adjusted quickly without specialist tools. The cable passes through the gripper and exits through the side opening, allowing precise adjustment of the suspension length.
Manufactured with a nickel-plated finish, the fitting combines a compact appearance with practical adjustability, making it ideal for professional display and suspension applications.
Applications & Advice
Applications & Advice
Applications
- Suspended signage and display panels
- Retail shop fittings and merchandising displays
- Architectural wire rope suspension systems
- Lighting suspension installations
- Exhibition stands and display structures
- Adjustable cable suspension assemblies
- Angled suspension applications
- Commercial interior installations
- Bespoke display and presentation systems
Installation Advice
The Reutlinger Type 18 M6 Female Hinged Cable Gripper is designed for use with compatible steel wire rope from 1mm to 1.8mm in diameter.
The M6 female-threaded connection allows the fitting to be attached to a compatible male-threaded mounting component.
Secure the threaded connection to a suitable fixing point, ensuring that the supporting structure and mounting components are appropriate for the intended load.
Insert the cable through the spring-loaded plunger at the top of the gripper and feed it through the internal gripping mechanism until it exits through the side opening.
The internal ball-bearing mechanism automatically grips the cable when tension is applied, allowing the suspension length to be adjusted as required.
Position the hinged connection to suit the direction of the suspension cable, ensuring that the fitting can articulate freely without placing unnecessary sideways pressure on the connection.
Important Installation Information
- Suitable for compatible 1mm to 1.8mm steel wire rope.
- Ensure the M6 threaded connection is securely engaged.
- Use the hinged connection to accommodate the required cable angle.
- Ensure the cable is clean, undamaged and free from deformation.
- Do not exceed the applicable working load limit.
- Do not adjust the gripper while supporting a load.
- Check that all mounting components and supporting structures are suitable for the intended application.
- The working load of the complete suspension system must not exceed that of its lowest-rated component.
- Not rated for lifting.
Technical Info
Technical Info
WORKING LOAD LIMITS (WLL)
7x7 Galvanised Steel Wire Rope – 2,300 N/mm²:
1.0mm Cable – WLL 13kg
1.2mm Cable – WLL 18kg
1.5mm Cable – WLL 27kg
1.8mm Cable – WLL 30kg
7x7 Stainless Steel Wire Rope – 1,570 N/mm²:
1.0mm Cable – WLL 8kg
1.2mm Cable – WLL 15kg
1.5mm Cable – WLL 20kg
1.8mm Cable – WLL 25kg
MANUFACTURER'S LOAD SPECIFICATIONS
Safety Factor: 5:1
Maximum Published WLL: 30kg with the specified 1.8mm galvanised cable
IMPORTANT INFORMATION
The working loads listed are the manufacturer's published ratings for the Type 18 three-ball gripping mechanism when used with the specified wire rope.
The working load limit depends on the cable diameter, construction, material and tensile strength.
The complete suspension system, including the gripper, cable, threaded connection, mounting components and supporting structure, must be assessed for its intended application.
Do not exceed the working load limit of the lowest-rated component.
Not rated for lifting.
