• A silver-colored A2-AISI 304 stainless steel Form B washer with visible branding on the inner diameter.

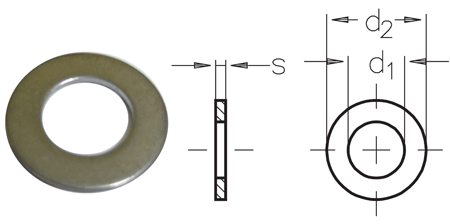

  • Technical Drawing of a washer with dimensions on a white background
1 2

ARANDELA-SS-M6-FORMA-B-BS4320

ARANDELA-SS-M6-FORMA-B-BS4320

£0.15 GBP
£0.15 GBP £0.15 GBP
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Product Code

163.012.106

593 en existencias
  • Arandela de acero inoxidable de grado AISI 304 Forma B según BS4320
  • Altamente resistente a la corrosión.
  • Acabado inoxidable pulido
  • Muchos accesorios roscados M6 compatibles en stock
  • Pida cualquier cantidad sin cargo mínimo de pedido

Esta arandela multiusos M6 A2-AISI 304 de acero inoxidable Forma B (medio espesor) según BS4320 es perfecta para uso en exteriores.

Applications & Advice

Typical Applications:

  • Stainless steel bolts and threaded fittings
  • Garden trellis and architectural installations
  • Mechanical fastening and assemblies
  • Marine and outdoor fixing applications
  • General-purpose fastening systems

Use with compatible M6 bolts, nuts and threaded fittings. The reduced thickness of this Form B washer makes it suitable for applications where a thinner washer is required. Position the washer beneath the bolt head or nut to distribute the clamping load and help protect the mounting surface. Ensure the washer thickness and dimensions are suitable for the intended application.

Dimensions

S: 0.8mm
d1: M6
d2: 12.5mm
