8mm A4-AISI 316 Stainless Steel Swageless Toggle - 105.010.708

8mm A4-AISI 316 Stainless Steel Swageless Toggle - 105.010.708

£33.23 GBP
£0.00 GBP £33.23 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

105.010.708

In stock
  • 8mm self-assembly A4-AISI 316 stainless steel Swageless Toggle Fitting
  • Highly polished Swageless Compression Terminal
  • Suitable for 8mm 1x19, 7x7 and 7x19 wire rope and steel cable
  • Correctly assembled, swageless toggle terminals can potentially achieve 90% of Cable Minimum Breaking Load
  • Easy to assemble by hand using spanners. No hydraulic presses or swaging tools necessary
  • Ideal for marine applications such as yacht rigging and mast stays, fabric structures, cable bracing, architectural, structural tensioning and display applications.

Applications & Advice

Suitable for use with 1x19, 7x7 and 7x19 stainless steel wire rope. NOT SUITABLE for use with galvanised cable.

Technical Info

How to Use

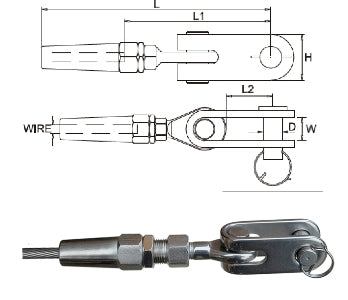

Dimensions

See photo above:

Cable Dia:8mm
L:148mm
L1: 102mm
L2: 30mm
H:30mm
W:18mm
D:12.7mm
