1.5mm (1/16") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C2 - 127.206.642.

Name: 1.5mm (1/16") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C2 - 127.206.642.
Brand: Loos & Co Inc Naples Florida (Fittings)
SKU: 127.206.642
Price: 3.61 GBP
Availability: InStock

£3.61 GBP

~~£3.61 GBP~~ £3.61 GBP

Sale Sold out

Shipping calculated at checkout.

Product Code

SKU:127.206.642

304 in stock

1.5mm (1/16") A2 AISI 304 Stainless Steel Single Shank Ball Terminal - 127.206.642.
Loo's product code: MS20664-C2
DFARS Compliant

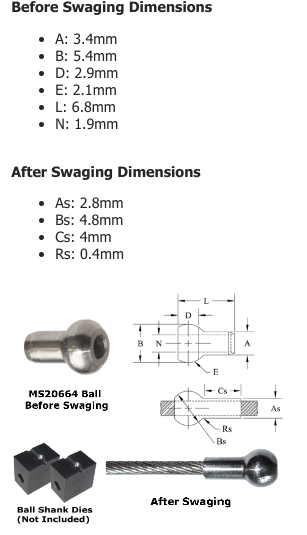

Suitable for use with 1.5mm wire rope. Manufactured from Stainless Steel in accordance with MIL-DTL-781 to the strict standards of MS20664. The expected strength for this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

Applications & Advice

Typical applications include aircraft cables, gym cables and control cables. This fitting can be pressed using the YCP120C tool or the YCP240C. With compatible ball die fittings (4.8mm ball).
