2mm - 2.5mm (5/64" - 3/32") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C3 - 127.206.643.
2mm - 2.5mm (5/64" - 3/32") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C3 - 127.206.643.
Regular price
£3.99 GBP
Regular price
£3.99 GBP
Sale price
£3.99 GBP
Shipping calculated at checkout.
Product Code
SKU:127.206.643
Quantity
890 in stock
Couldn't load pickup availability
2mm - 2.5mm (5/64 - 3/32"") A2 AISI 304 Stainless Steel Single Shank Ball Terminal - 127.206.643
Loo's product code: MS20664-C3
DFARS Compliant
Suitable for use with 2mm - 2.5mm cable. Manufactured from Stainless Steel in accordance with MIL-DTL-781 to the strict standards of MS20664. The expected strength for this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.
Applications & Advice
Applications & Advice
Typical applications include aircraft cables, gym cables and control cables. This fitting can be pressed using the YCP120C tool or the YCP240C. With compatible ball die fittings (6.4mm ball).

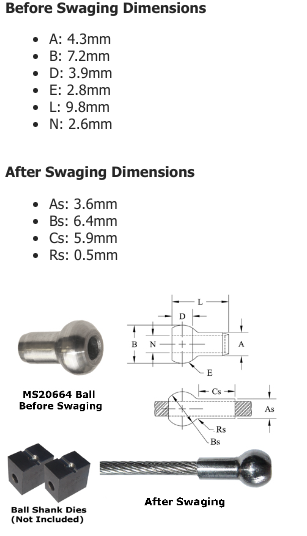

Dimensions
Dimensions
