3mm (1/8") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C4 - 127.206.644.
3mm (1/8") AISI 304 Stainless Steel Single Shank Ball Terminal MS20664-C4 - 127.206.644.
Regular price
£4.93 GBP
Regular price
£4.93 GBP
Sale price
£4.93 GBP
Shipping calculated at checkout.
Product Code
SKU:127.206.644
Quantity
1232 in stock
Couldn't load pickup availability
3mm (1/8") A2 AISI 304 Stainless Steel Single Shank Ball Terminal - 127.206.644
Loo's product code: MS20664-C4
DFARS Compliant
Suitable for use with 3mm cable. Manufactured from Stainless Steel in accordance with MIL-DTL-781 to the strict standards of MS20664. The expected strength of this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.
Applications & Advice
Applications & Advice
Typical applications include aircraft cables, gym cables and control cables. This fitting can be pressed using the YCP240C. With compatible ball die fittings (8mm ball).

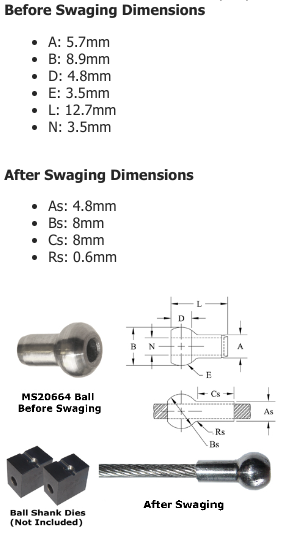

Dimensions
Dimensions
Downloads
Downloads
