4.8mm Stainless Steel Single Shank Ball Terminal - 100.206.605

4.8mm Stainless Steel Single Shank Ball Terminal - 100.206.605

Regular price £2.52 GBP
Regular price £0.00 GBP Sale price £2.52 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

SKU:100.206.605

2700 in stock

Please note this fitting is very tight on 5mm cable and may require drilling out to 5.4mm bore to allow use on metric cable. It was designed primarily for 4.8mm (3/16") diameter Gym Cable.

4.8mm (3/16") A4 AISI 316 Stainless Steel Single Shank Ball fitting

Suitable for use with 4.8mm (3/16") Gym Cable like the 3/16" Exerflex Pro

Manufactured from Marine grade Stainless Steel. Suitable for Gym cables and in Marine and Food environments. The expected strength regarding this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

This product can be fitted using our YCP-240C hydraulic swaging tool & 5mm ball dies.

Typical Applications

Gym Cables

Winch Cables

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

Applications & Advice

This stainless steel single shank swage ball terminal will form a strong & reliable end termination or stop fitting for 4.8mm (3/16") cable. Perfect for gym cables & a wide range of decorative & display applications.

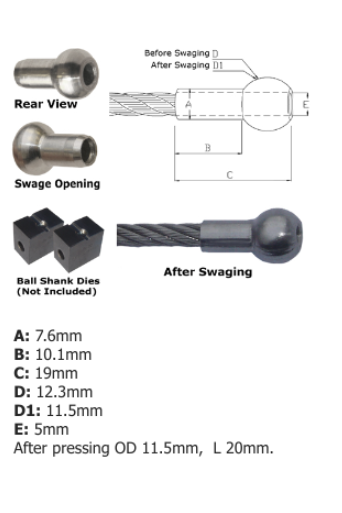

Dimensions
