MS20664-C6 A2-AISI 304 Stainless Steel Single Shank Ball Fitting 5mm (3/16") Cable - 127.206.646

MS20664-C6 A2-AISI 304 Stainless Steel Single Shank Ball Fitting 5mm (3/16") Cable - 127.206.646

£7.89 UK VAT excl.
£9.47 UK VAT incl.
Sale Sold out
Shipping calculated at checkout.

Product Code

127.206.646

Quantity Discounts
 More payment options

5mm (3/16") A2 AISI 304 Stainless Steel Single Shank Ball fitting

Loo's product code: MS20664-C6

DFARS compliant

Suitable for use with 5mm cable. Manufactured from Stainless Steel in accordance with MIL-DTL-781 to the strict standards of MS20664. The expected strength regarding this type of end termination is 90% of the MBL of the wire rope. Testing must be performed to verify the strength of the assembly.

Typical Applications

Aircraft cables

Automotive Industry - control cables

Gym Cables

For support with manufacturing requirements, further help or information, please contact a member of our Sales Team.

This fitting can be pressed using the YCP240C, with compatible ball die fittings (11.2mm ball).

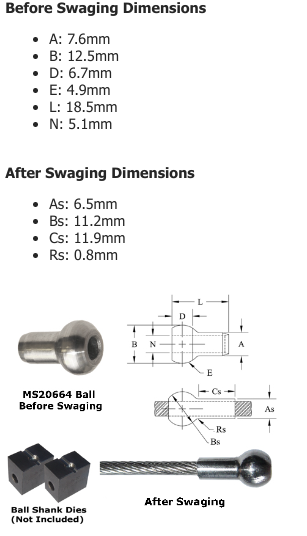

Dimensions

Datasheet

The MS20664 Series single shank balls are manufactured from stainless steel in accordance with MIL-DTL-781 to the strict standards of the MS20664, and are certified to that standard.
