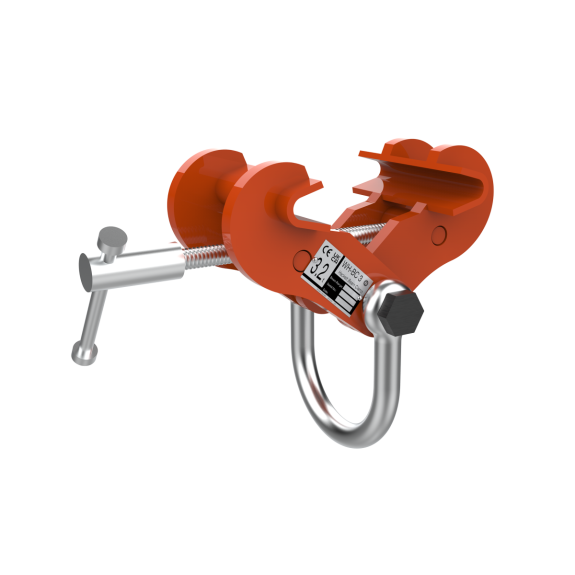

WH BC Fixed Jaw Super Clamp

The below working load limits and durations have been established specifically for most William Hackett clamps and only apply in overhead beam attachment i.e: DO NOT apply if clamps are to be used for lifting beams.

The tables apply to our clamps only (selected models) and we strongly advise that stress calculations should be carried out (by the user's engineering department) for all support steelwork.

WARNING: All clamps must be correctly applied to the beam by a competent person and fully hand tightened. If in doubt, contact the manufacturer for their recommendations.

NOTE: Clamp model WH BC (027.200) is not suitable for any side loading as it is of lightweight design.

Although we are confident that our beam clamps could operate at 90° without any reduction in efficiency, William Hackett do not recommend this type of use in application, there will be a significant overturning moment generated on the beam flange and this could result in the actual supporting structure being permanently deformed and or damaged. If clamps are used in any other way than that indicated above, William Hackett will not accept any liability and would strongly recommend that this unsafe practice is not adopted.

Angle from Vertical0°0° to 15°15° to 30°30° to 45°Reduction FactorNil17%34%50%ModelsWLLWLLWLLWLL027.2002 tonneN/AN/AN/A027.320,027.320.E3.2 tonne2.5 tonne2 tonne1.5 tonne027.4004 tonne3.3 tonne2.6 tonne2 tonne027.500, 027.500.E5 tonne4.1 tonne3.3 tonne2.5 tonne027.6006 tonne5 tonne4 tonne3 tonne027/100010 tonne8.3 tonne6.5 tonne5 tonne027/1500, 027/1500E15 tonne12.4 tonne10 tonne7.5 tonne

BS EN13155:2020 + AI:2009, ASME B30.20 Chapter 6 Clamps

Specification Sheet
