WH UBC Universal Beam Clamp

WH UBC Universal Beam Clamp

常规价格 £373.32 UK VAT excl.
£447.98 UK VAT incl.
常规价格 促销价
促销 售罄
结账时计算的运费

Product Code

SKU:857.028.200

Working Load Limit - tonnes

 更多支付选项

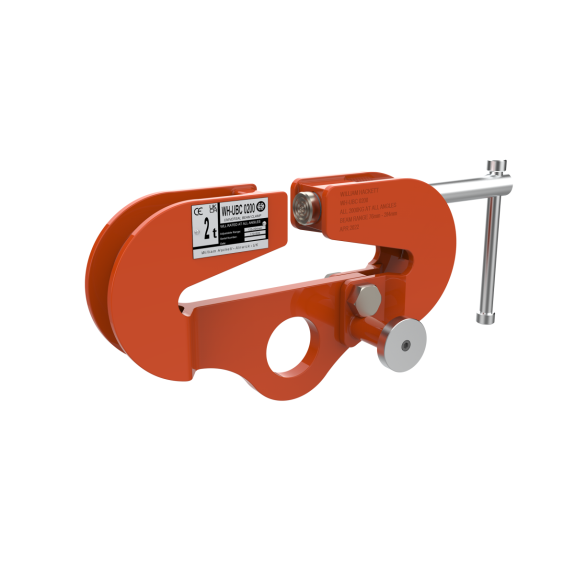

The William Hackett Universal Beam Clamp is designed, developed and tested in the UK. This specialist clamp is intended for vertical use and side load applications. The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point. This is the perfect clamp to be suspended on beams offshore due to its versatility. It can be loaded at any angle and eliminates the use of spreader beams in various lifting operations. We can offer training on safe use and inspection.

WLL Range: 2t - 10t
Proof Load Test: 2 X WLL
Safety Factor: 4:1
Temp Range: -20°C to +120°C

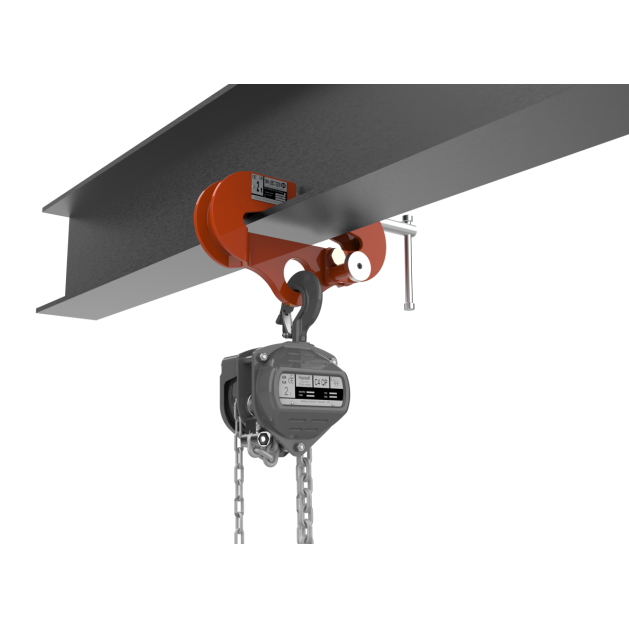

The primary application for the William Hackett Universal Beam Clamp is attatching it to a beam and using it as a suspension point for other equipment such as a chain hoist.

The William Hackett Universal Beam Clamp has been designed for vertical use, and side load applications, where conventional clamps are not.

The Universal Beam Clamp is suitable for pulling and lifting at angles across the beam or as a semi-permanent anchor point.

It can beloaded at any angleand eliminates the use of spreader beams in various lifting operations.

Fitted with an adjustable locking mechanism, ensuring secure clamping to the beam.

Built-in suspension point for low headroom design.

Lightweight design allowing for quick clamping and unclamping.

Our 10.0 tonne extra wide clamp is designed to accommodate a range of beam widths and thicknesses.

Standards:BS EN13155:2020 + AI:2009, ASME B30.20 Chapter 6 Clamps
