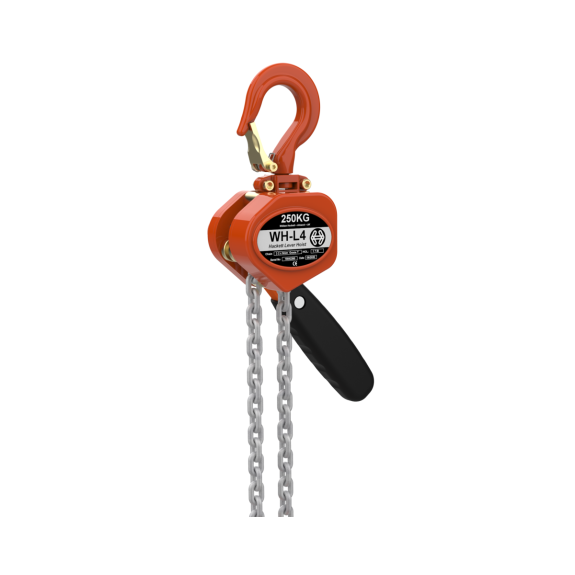

WH L4 Compact Lever Hoist
WH L4 Compact Lever Hoist
Product Code
SKU:857.032.025
现货
无法加载取货服务可用情况
The William Hackett L4 Compact Lever Hoist is designed, manufactured and proof load tested in the UK.
The 250kg and 500kg capacity lever hoists weigh just 1.6 kg and 2.6 kg respectively which means they are the perfect addition to the tool kit. Each mini lever hoist is supplied with a hard-wearing belt carry case.
We provide a full range of spare parts and can offer training on safe use and inspection.
| WLL Range: | 250kg - 500kg |
| Proof Load Test: | 1.5 X WLL |
| Safety Factor: | 4:1 |
| Temp Range: | -20°C to +120°C |
Sectors
Applications & Advice
Applications & Advice
Technical Info
Technical Info
LIGHT LOAD CAPABILITY: the WH L4 Compact Lever Hoist is tested and certified at 2% of the lever hoist rated capacity.
TWIN PAWL: double safety; fitted as standard.
SAFETY LATCHES: the WH L4 Compact Lever Hoist top and bottom hooks are fitted with heavy duty cast steel latches. The latch and hook tips are integrated creating a strong and robust hook closure.
OVERLOAD INDICATOR MARKS: the WH L4 Compact Lever Hoist top and bottom hooks have, as part of the hook forging, overload indicator marks either side of the hook throat.
LOAD CHAIN: fitted with load chain that generally complies with international standard BS EN818-7. Grade T (8).
ROBUST END STOP: Ergonomically designed load chain end stop allows the operative to secure a firm grip when using the end stop to adjust the chain.
WEARABLE ACCESSORIES: supplied with a hard wearing belt bag carry case.
MANUFACTURED AND PROOF TESTED in the U.K.
Standards:BS EN13157:2004 + AI:2009, ASME B30.21-2014, AS1418.2-1997, SANS 1636:2007, NORSOK R-002: 2017 (except for overload limiter)
