WH GT Geared Trolley
WH GT Geared Trolley
Product Code
SKU:857.055.050
现货
无法加载取货服务可用情况

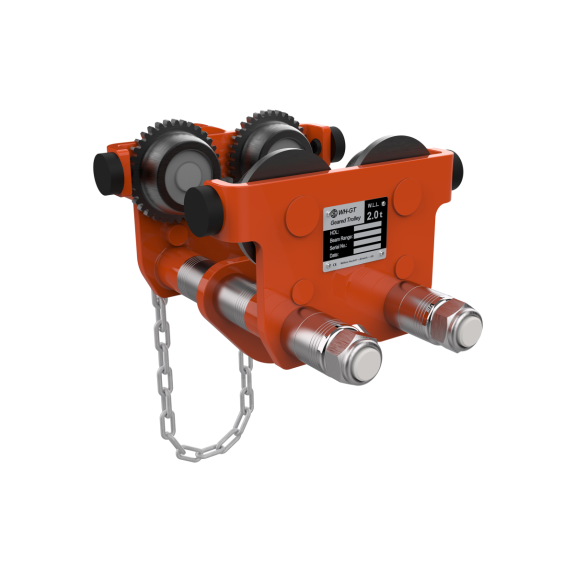

The William Hackett Geared Trolley is designed, developed and tested in the UK. It has 2 bars which creates greater stability and has various sized spacers which are used to determine the distance between the 2 plates and the beam width. The trolley is manovered along the beam by pulling the handchain which is attached to a drive gear. This is helpful when the trolley is suspended out of reach. We can offer training on safe use and inspection.
WLL Range: | 500kg - 10t |
Proof Load Test: | 1.5 X WLL |
Safety Factor: | 4:1 |
Temp Range: | -20°C to +120°C |
Sectors
Applications & Advice
Applications & Advice
Dimensions
Dimensions
Downloads
Downloads
Technical Information
Technical Information
WLL Range - 500 kg - 10t
Proof load test - 1.5 x WLL
Finish - Orange powder coated paint
Bars - Twin bar, zinc plated for added corrosion protection
Extended bars - Can be supplied on request for wider beam widths
End stoppers - To prevent damage
Anti tilt - To prevent damage or loss of load
Wheels - Universal wheels to suit tapered or flat flange
Handchain - It has been designed so that the bottom of the hand chain loop is 500mm from ground level.
