M8x1 Fine Pitch RH A4-AISI 316 Stainless Steel DIN 934 Hexagon Full Nut - 303.515.408

M8x1 Fine Pitch RH A4-AISI 316 Stainless Steel DIN 934 Hexagon Full Nut - 303.515.408

£1.22 GBP
£1.22 GBP £1.22 GBP
Sale Sold out
Shipping calculated at checkout.

Product Code

303.515.408

Low stock: 4 left

The M8 Fine Pitch Hexagon Full Nut is manufactured from marine-grade A4 AISI 316 stainless steel, offering excellent corrosion resistance for indoor, outdoor and marine applications.

Featuring a 1mm fine pitch right-hand thread and traditional hexagonal design, this nut provides a secure fastening solution when used with compatible M8 x 1mm threaded bolts, studs and fittings.

Suitable for architectural, mechanical and general assembly applications where a finer thread pitch is required.

Available to order in any quantity, with no minimum order charge.

Applications & Advice

Typical Applications:

  • M8 x 1mm fine pitch threaded bolts and fittings
  • Marine and outdoor fastening applications
  • Mechanical equipment and precision assemblies
  • Architectural metalwork and installations
  • Applications requiring fine pitch threaded connections

Use only with compatible M8 x 1mm right-hand threaded bolts, studs and fittings. The 1mm fine pitch differs from the standard M8 coarse thread pitch of 1.25mm. Ensure the mating component has the correct thread pitch before installation. Tighten using a suitable spanner or socket, taking care to avoid overtightening. For applications exposed to vibration, consider an appropriate locking method.

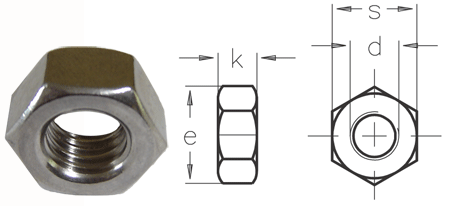

Dimensions

d: M8 RH
e: 14.4mm
k: 6.5mm
s: 13mm
