球-SS-1.5-MS20664-C2

Name: 球-SS-1.5-MS20664-C2
Brand: Loos & Co Inc
SKU: 127.206.642
Price: 3.61 GBP
Availability: InStock

£3.61 GBP

~~£3.61 GBP~~ £3.61 GBP

促销售罄

结账时计算的运费。

Product Code

SKU:127.206.642

332 件存货

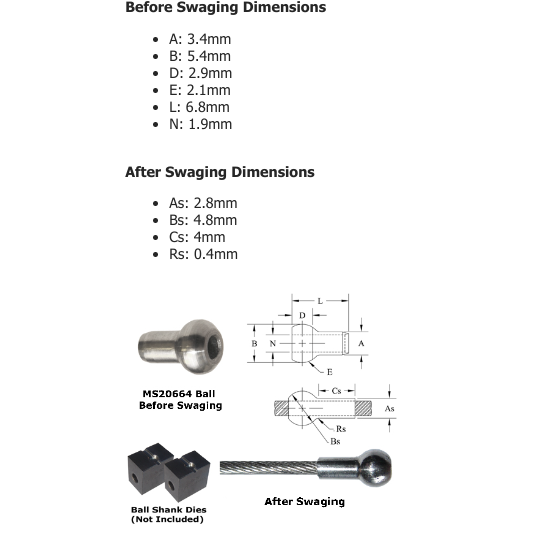

1.5mm (1/16") A2 AISI 304 不锈钢单柄球接头

nbsp;

Loo的产品代码：MS20664-C2

符合 DFARS 标准

nbsp;

适用于 1.5 毫米电缆。采用不锈钢制造，符合 MIL-DTL-781 和 MS20664 的严格标准。此类端部终端的预期强度为钢丝绳 MBL 的 90%。必须进行测试以验证组件的强度。

nbsp;

典型应用

nbsp;

飞机电缆

汽车工业 - 控制电缆

健身拉力器

nbsp;

如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。

Applications & Advice

Typical Applications:

Aerospace and aviation cable assemblies
Mechanical control cable systems
Industrial wire rope assemblies
Precision cable termination systems

Ensure the ball terminal is compatible with the wire rope construction and diameter. Use suitable swaging equipment and follow the correct installation procedures.

The expected termination strength is 90% of the wire rope's Minimum Breaking Load (MBL). Testing must be carried out to verify the actual strength of the completed assembly.
