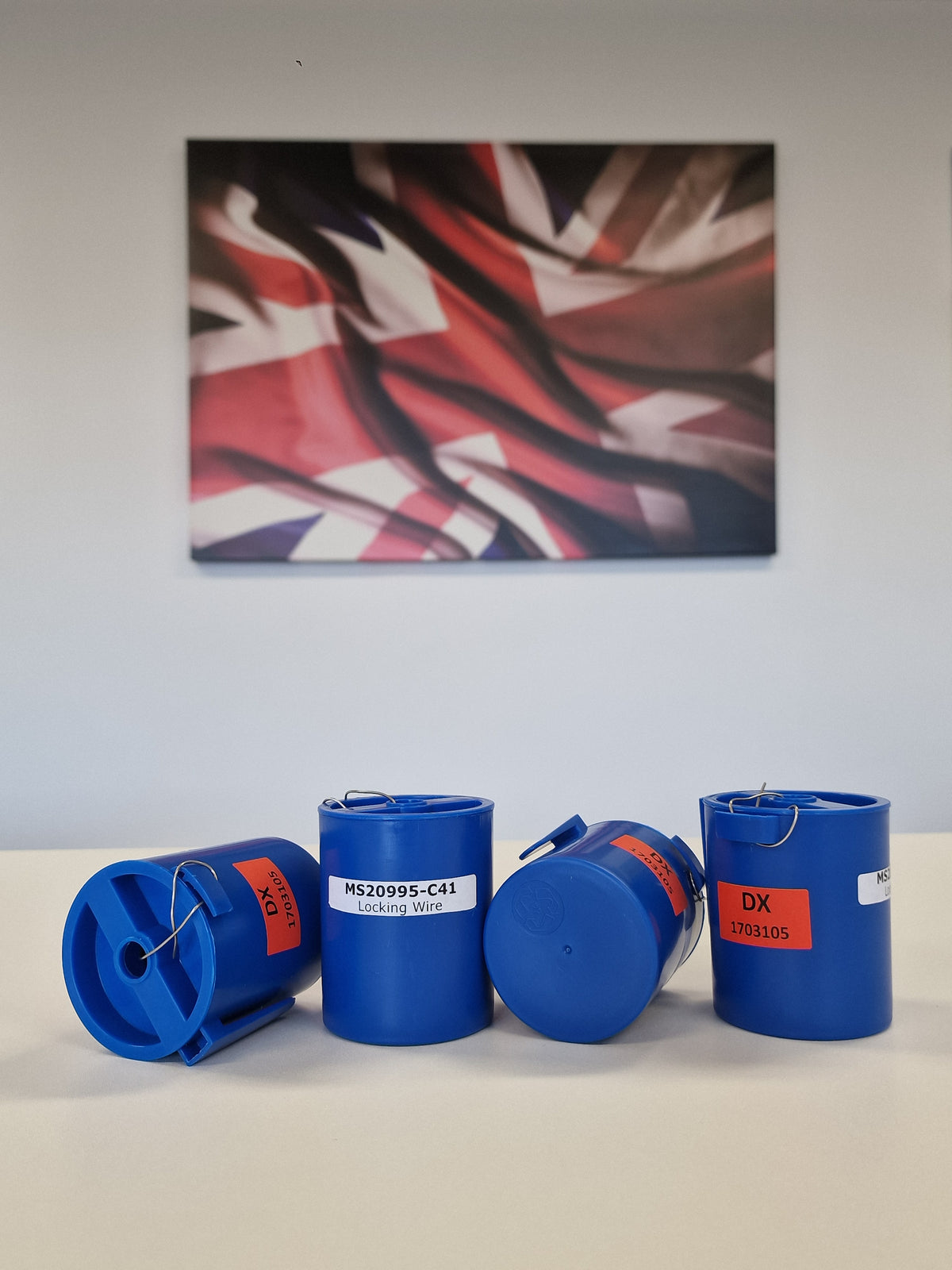

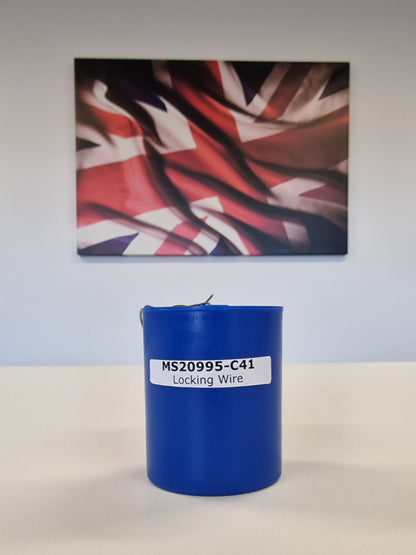

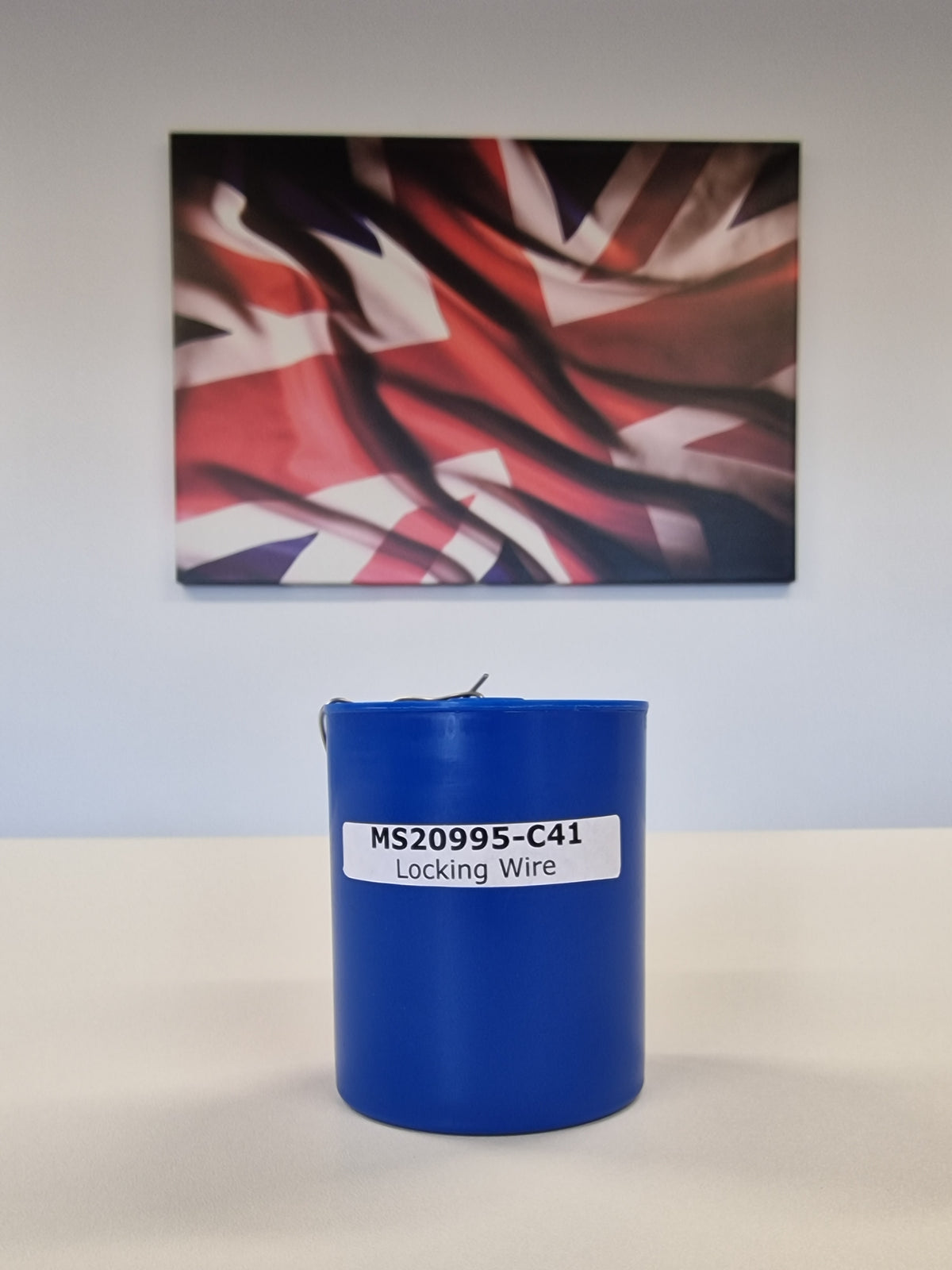

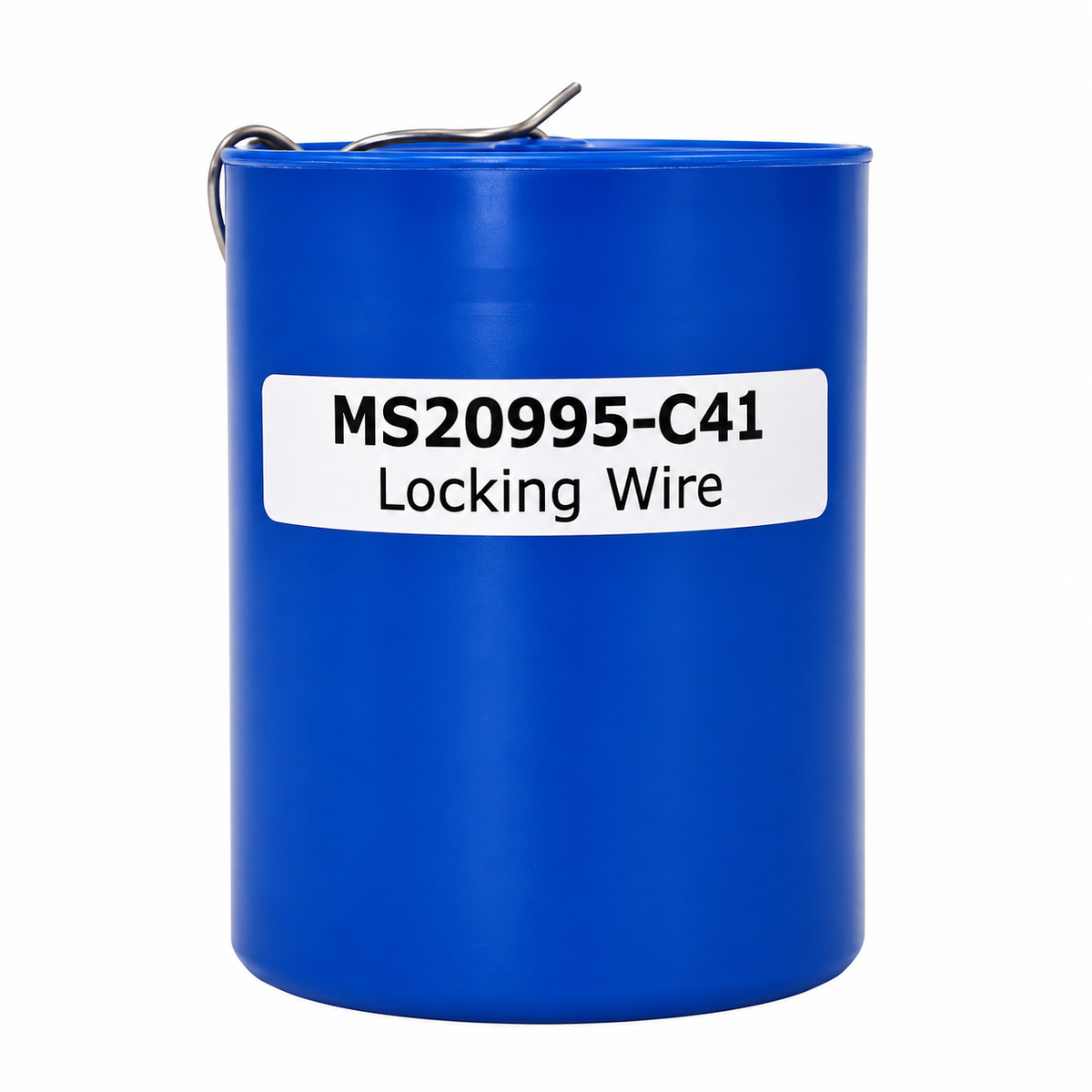

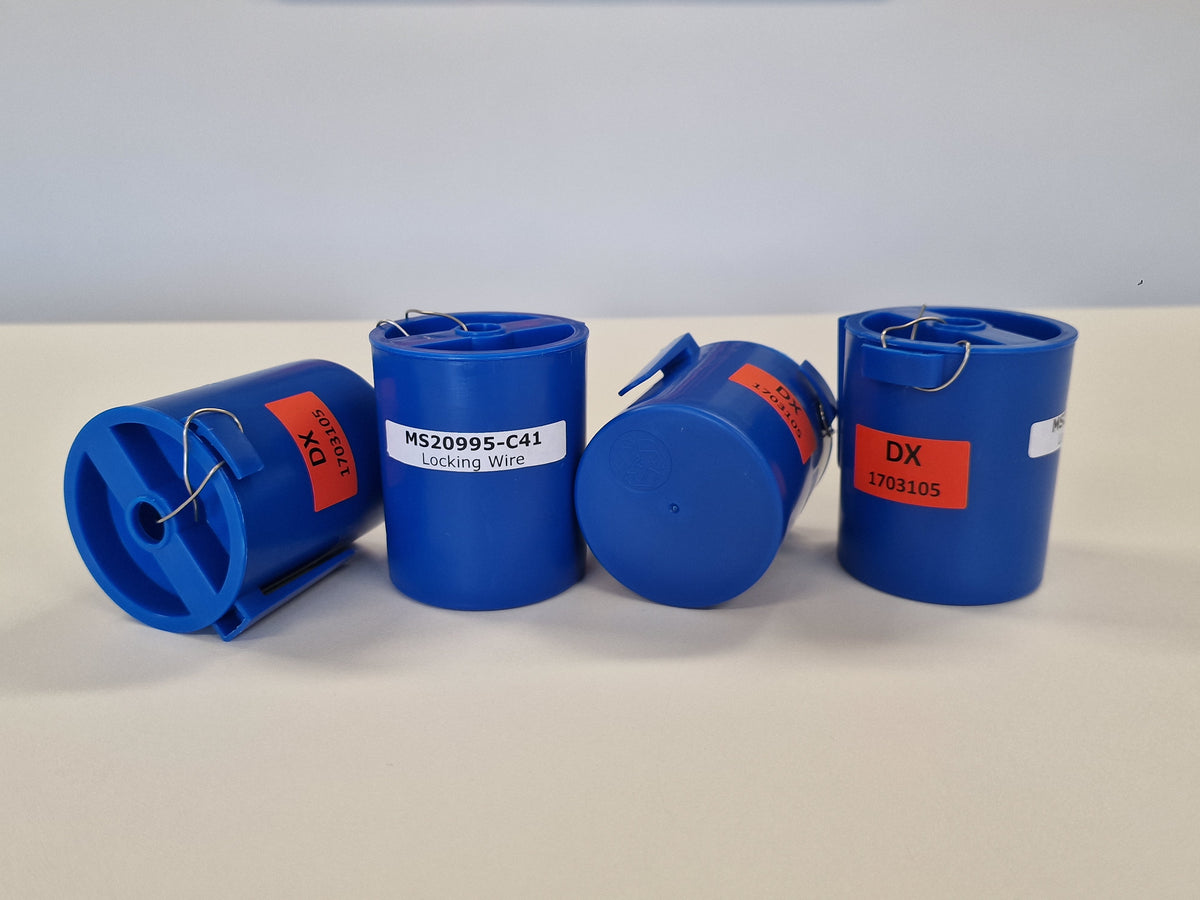

1mm (0.041") MS20995-C41 Stainless Steel Locking Wire 1lb Tub. 223ft (67.9mtrs) - 128.041.104

How to Install Safety Lock Wire

Before installing safety lock wire, ensure the nut or bolt has been tightened to the correct specified tension. Where possible, align the holes through which the locking wire will pass, but never loosen or overtighten the fastener simply to achieve alignment.

Safety lock wire should be installed so that it resists loosening of the fastener. Once secured to the anchor point, the wire should apply tension to the nut or bolt in the tightening direction.

Avoid excessive twisting or overwinding of the wire. Overstressing the material can weaken it and may cause the wire to fail, reducing its effectiveness as a secondary locking method.

Once installation is complete, trim the excess wire, leaving approximately 4–6 twists beyond the final loop. Ensure the cut end is safely positioned to avoid leaving a sharp exposed edge.

Safety Lock Wire

Safety Lock Wire, also known as locking wire, is a soft annealed wire used to help secure nuts, bolts and other components in applications subject to vibration or demanding operating conditions.

Manufactured from malleable stainless steel alloy, the wire is passed through pre-drilled holes in the fastener before being twisted and secured to a suitable anchor point, such as another fastener.

Twisting the wire creates tension within the secured loop, helping to resist unwanted movement and prevent fasteners from loosening during operation.

Safety lock wire is commonly used where maintaining secure fastenings is particularly important, including aerospace, automotive, motorsport, engineering and industrial applications.

1.04mm (0.041") Diameter Locking Wre

Length 68 mtrs

Weight: 0.45kgs (1lb)

Datasheet
