球-SS-2-MS20664-C3
球-SS-2-MS20664-C3
常规价格
£3.99 GBP
常规价格
£3.99 GBP
促销价
£3.99 GBP
结账时计算的运费。
Product Code
SKU:127.206.643
数量
965 件存货
无法加载取货服务可用情况
2mm - 2.5mm (5/64 - 3/32"") A2 AISI 304 不锈钢单柄球接头
nbsp;
Loo的产品代码：MS20664-C3
符合 DFARS 标准
nbsp;
适用于 2mm - 2.5mm 电缆。采用不锈钢制造，符合 MIL-DTL-781 和 MS20664 的严格标准。此类端部终端的预期强度为钢丝绳 MBL 的 90%。必须进行测试以验证组件的强度。
nbsp;
典型应用
nbsp;
汽车工业 - 控制电缆
nbsp;
如需制造要求支持、进一步帮助或信息，请联系我们的销售团队成员。
Applications & Advice
Applications & Advice
Typical Applications:
- Aerospace and aviation cable assemblies
- Gym and fitness equipment cables
- Mechanical control cable systems
- Industrial wire rope assemblies
Ensure the ball terminal is compatible with the wire rope diameter and construction. Use suitable swaging equipment and the correct die set to achieve a secure termination. The expected termination strength is 90% of the wire rope's Minimum Breaking Load (MBL). Testing must be carried out to verify the actual strength of the completed assembly.
Compatible Crimping Tools:
- YCP120C Hydraulic Crimper - 101.100.120
- YCP240C Hydraulic Crimper - 101.100.240
- 6.4mm Ball Fitting Die Set - 101.240.064

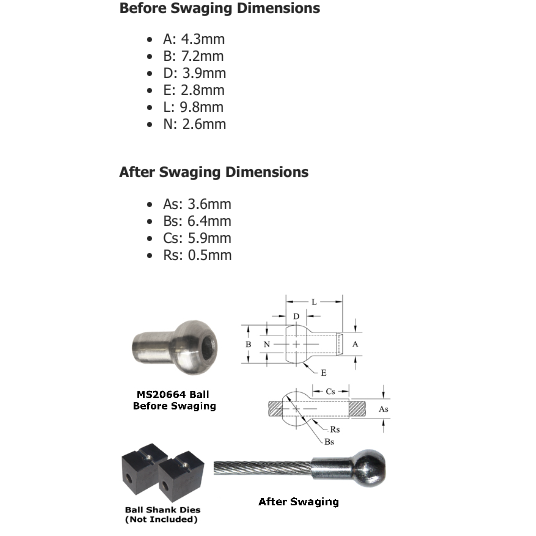

Dimensions
Dimensions
Downloads
Downloads
